Stainless Steel Cable Mesh | Tin-plated Copper Ferrule Type

Product Parameters

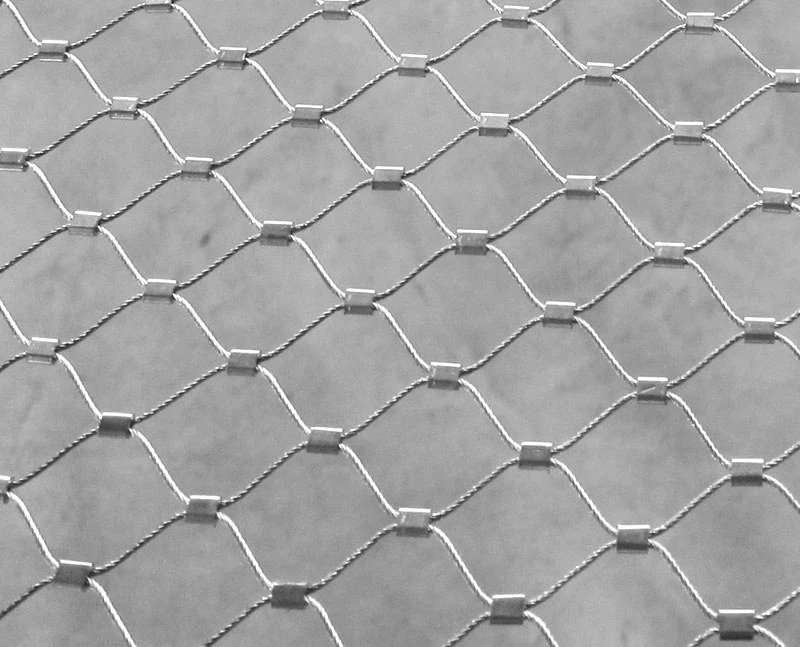

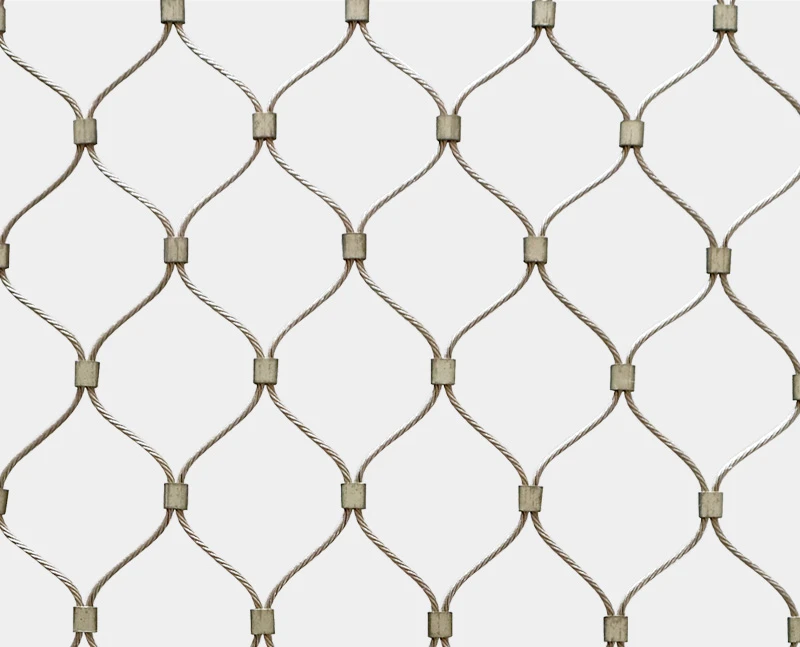

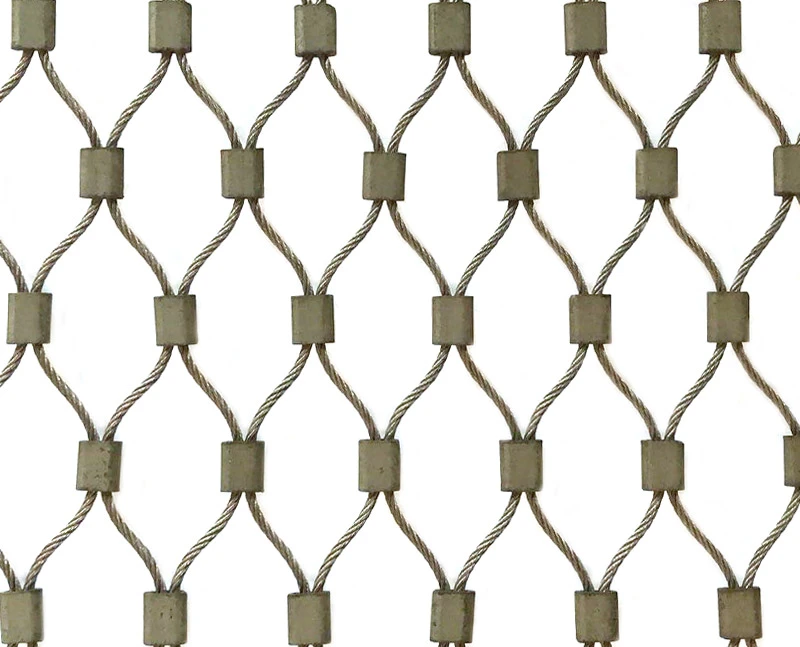

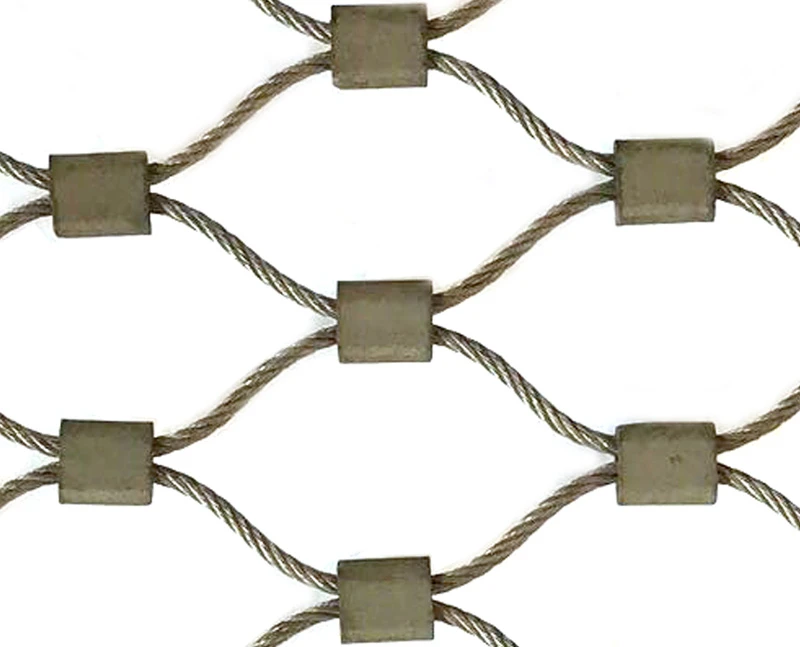

Stainless steel cable tin-plated copper ferrule mesh


Item No.s	Cable Diameter		Mesh Opening Size（W×H）
	inch	mm	inch	mm
BZ-32120F	1/8	3.2	4.75 x 8.23	120 x 207.8
BZ-32102F	1/8	3.2	4 x 6.9	102 x 176.7
BZ-3290F	1/8	3.2	3.55 x 6.15	90 x 156
BZ-3276F	1/8	3.2	3 x5.2	76 x 131.6
BZ-3251F	1/8	3.2	2 x3.46	51 x88.3
BZ-24102F	3/32	2.4	4x6.9	102x176.7
BZ-2490F	3/32	2.4	3.55x6.15	90x 156
BZ-2476F	3/32	2.4	3 x 5.2	76x 131.6
BZ-2460F	3/32	2.4	2.4x 4.16	60x 104
BZ-2451F	3/32	2.4	2x3.46	51 x 88.3
BZ-2076F	5/64	2.0	3 x 5.2	76 x 131.6
BZ-2060F	5/64	2.0	2.4x 4.16	60 x 104
BZ-2051F	5/64	2.0	2 x 3.46	51 x 88.3
BZ-2038F	5/64	2.0	1-1/2 x 2.6	38 x 65.8
BZ-1676F	1/16	1.6	1.2 x2.08	76 x 131.6
BZ-1651F	1/16	1.6	2x 3.46	51 x 88.3
BZ-1638F	1/16	1.6	1-1/2 x 2.6	38 x 65.8
BZ-1630F	1/16	1.6	1.2x2.08	30 x 52
BZ-1625F	1/16	1.6	1 x 1.73	25.4 x 44
BZ-1238F	3/64	1.2	1-1/2x2.6	38 x 65.8
BZ-1230F	3/64	1.2	1.2 x 2.08	30 x 52
BZ-1225F	3/64	1.2	1 x 1.73	25.4 x 44
BZ-1220F	3/64	1.2	4/5 x 1.39	20 x 34.6

Applications

The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.

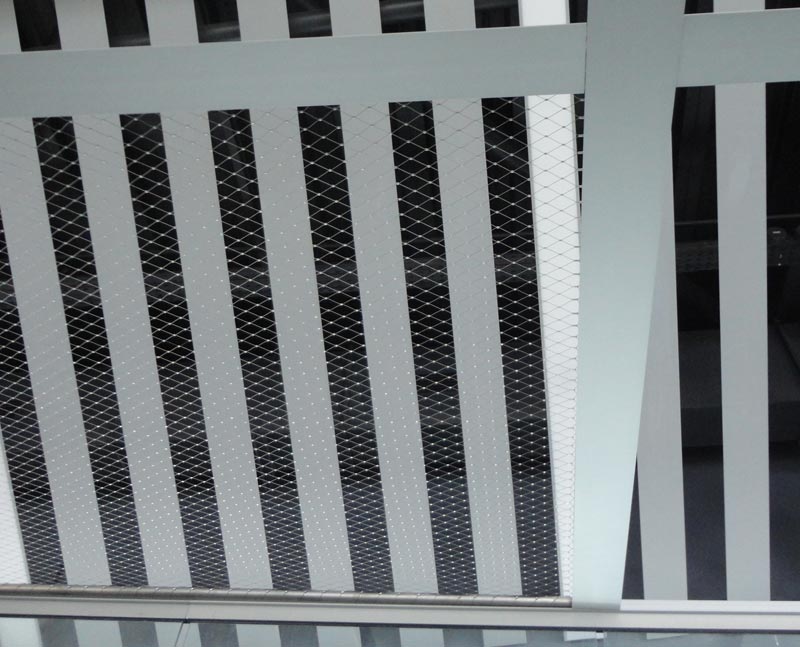

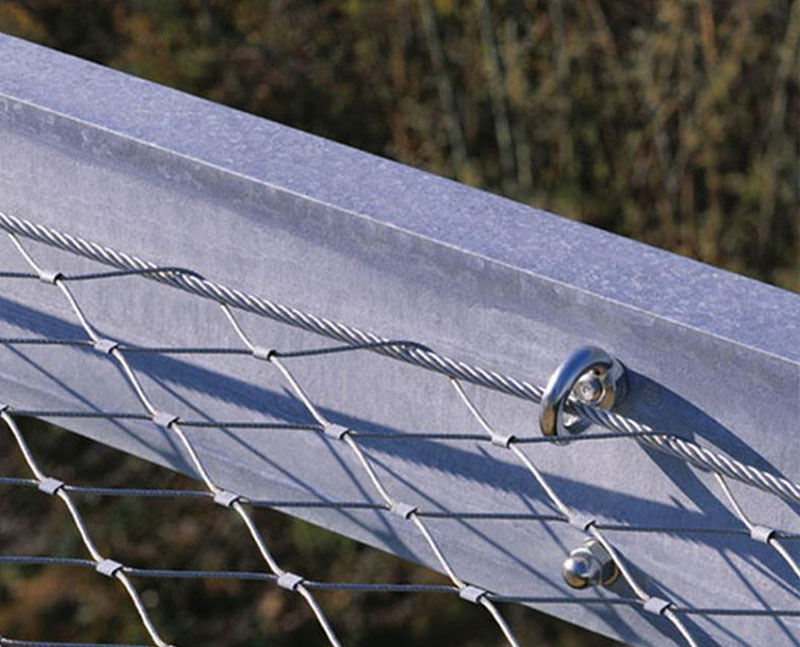

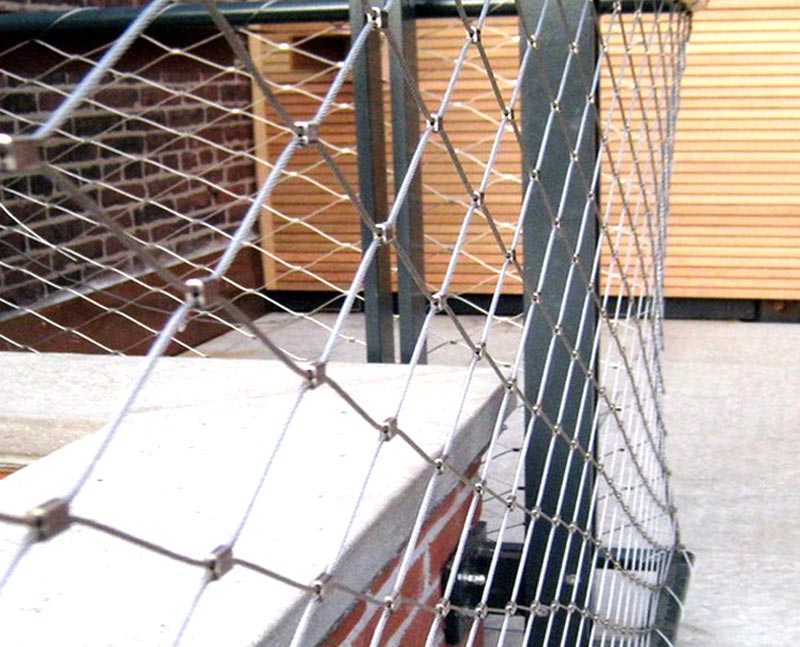

Stainless steel cable safety mesh	Stainless steel cable protection mesh	Ferrule mesh handrail infills

Applications
