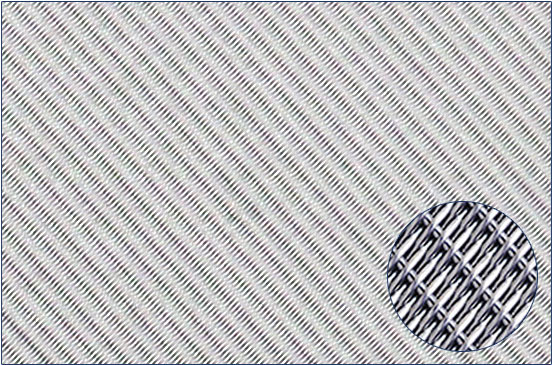

Dutch Woven Mesh is a very important type of industrial wire mesh. The materials used to produce Dutch weave wire mesh are stainless steel wire, nickel wire, brass wire and black iron wire, among which stainless steel is the most commonly used material. Stainless steel dutch woven mesh is a versatile material that has found wide application in various industries, including aerospace, chemical, and food processing. It is known for its excellent strength, durability, and corrosion resistance, making it ideal for use in harsh environments. However, selecting the right stainless steel dutch woven mesh for your application can be a daunting task.
In this article, we will discuss some factors to consider when selecting the right stainless steel dutch woven mesh for your application.
The mesh count refers to the number of openings per linear inch in the mesh. The higher the mesh count, the finer the mesh. Mesh count is an important factor to consider when selecting the right stainless steel dutch woven mesh for your application. A higher mesh count is ideal for applications that require a finer filtration, while a lower mesh count is suitable for applications that require a coarser filtration. The diameter of the wire mesh is different from the diameter of the weft wire, and the number of mesh is different. Generally, the diameter of the diameter wire is larger than the diameter of the weft wire. Reasonable matching of wire diameter and mesh to achieve the filtration precision that cannot be achieved by stainless steel square wire mesh, so dutch woven mesh are fine filtration stainless steel filter mesh.
The wire diameter refers to the thickness of the wire used in the mesh. It is an important factor to consider when selecting the right stainless steel dutch woven mesh for your application. A thicker wire diameter provides greater strength and durability, while a thinner wire diameter provides greater flexibility and ease of use. It is important to choose the wire diameter that is appropriate for your application to ensure optimal performance and longevity. Generally speaking, the larger the filtration value of wire mesh, the larger the filament diameter, the thicker the screen is, and the stronger the ability to withstand pressure; conversely, the higher the filtration accuracy of the screen, the smaller the filament diameter, and the thinner the screen is.
The material grade refers to the quality of the stainless steel used in the mesh. There are various grades of stainless steel available, each with its own unique properties and characteristics. The most commonly used grades for stainless steel dutch woven mesh are 304 and 316. 304 stainless steel is a general-purpose stainless steel that is suitable for most applications, while 316 stainless steel is a more corrosion-resistant stainless steel that is suitable for applications in harsh environments, such as marine and chemical industries.
The weaving pattern refers to the arrangement of the wires in the mesh. According to different weaving methods, stainless steel dutch woven mesh has four weave types: plain weave, twill weave, bamboo flower weave and reversed dutch weave. Plain and twill woven dutch woven mesh has low mesh count in the warp direction and high mesh count in the weft direction, while contrast mat mesh has high mesh count in the warp direction and low mesh count in the weft direction. Reversed dutch woven mesh is generally 10 meters long, 40mm-210mm wide, 40 mesh-350 mesh, and up to 50cm wide.
Filtration accuracy is an important indicator for choosing dutch woven wire mesh, so before purchasing, you should first check the filtration accuracy data of dutch woven mesh. Make sure that the filtration accuracy of the product meets your requirements. Additionally, if your application requires a high temperature resistance, you should select a stainless steel dutch woven mesh that can withstand high temperatures. If your application requires a high corrosion resistance, you should select a stainless steel dutch woven mesh that is made from a corrosion-resistant material, such as 316 stainless steel.
In conclusion, selecting the right stainless steel dutch weave wire mesh for your application is a crucial task that requires careful consideration of various factors. Mesh count, wire diameter, material grade, weaving pattern, and application requirements are some of the factors to consider when selecting the right stainless steel dutch weave mesh for your application. By carefully considering these factors, you can ensure that you select the right stainless steel dutch woven mesh that will provide optimal performance and longevity for your application.
If you don't know how to choose, you can contact us and we will provide you with the right solution.
