The Introduction of Perforated Metal

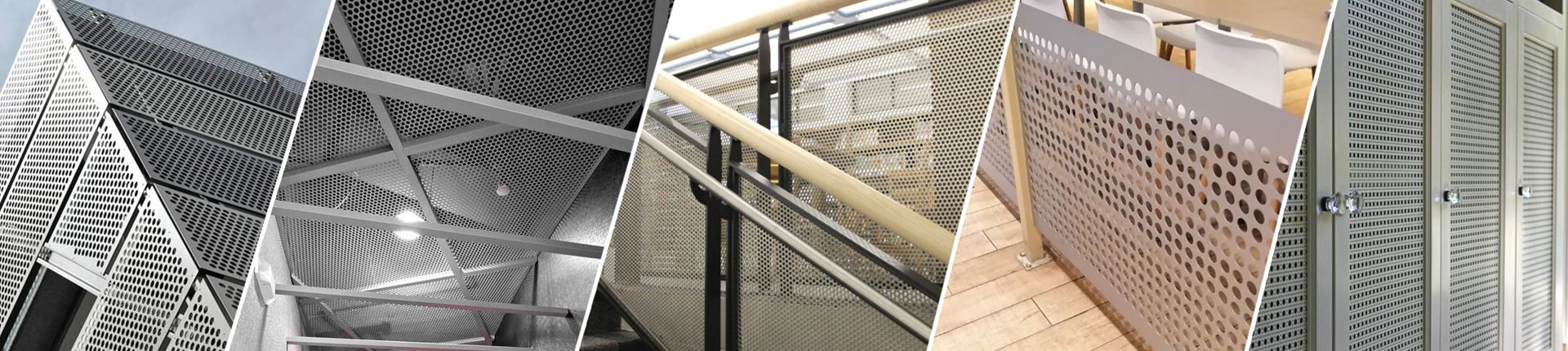

Perforated metal also called perforated metal sheet or perforated metal screen, it is using metal plate as material and produced by CNC stamping machine. The commonly used material are stainless steel, carbon steel, galvanized steel, aluminum, copper, etc. Perforated metal has the advantages of strength and durability, uniform mesh, high temperature resistance, corrosion resistance, and it is has a very wide range of applications. Perforated metal are used in chemical machinery, pharmaceutical equipment, food machinery, washing machine, silencing equipment, refrigeration equipment, speaker, paper industry, hydraulic accessories, filtering equipment and other industries.
Bz Wire Mesh provide various specifications of perforated metal, the plate thickness range is from 0.4-8mm, and hole diameter range is 1-30mm, we can provide perforated metal in panels or rolls, also can do the cutting, bending and welding process and provide the finished product to our clients.
Product Features:
●Sturdy and durable.
●Uniform mesh holes.
●High temperature resistance.
●Corrosion resistance.
●Widely applications.
The Parameters and Common Specifications of Perforated Metal

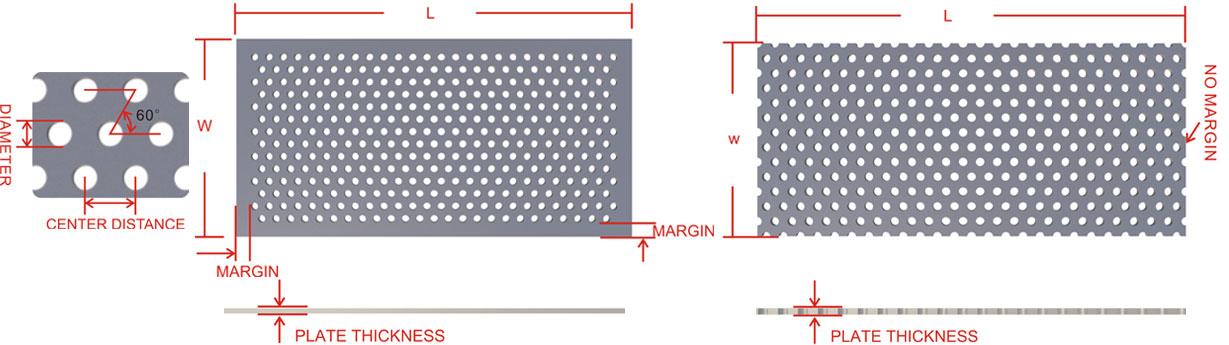

The main parameters of perforated metal are hole diameter, center distance, margin, plate thickness, mesh width and length.

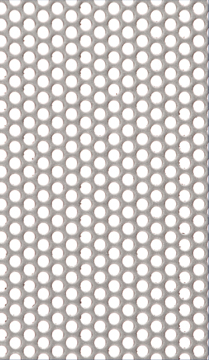

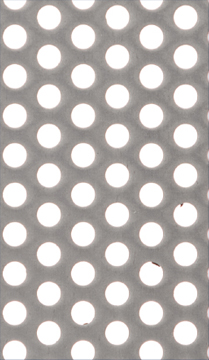

Common Specifications of Perforated Metal (Round Hole) | ||||
Hole Diameter | Center Distance | Plate Thickness | Standard Panel Szie | Remark |
(mm) | (mm) | (mm) | (mm) | |
1 | ≥2 | 0.4-1 | 1220×2440 | The hole diameter need to be larger than the plate thickness |
1.5 | ≥2.5 | 0.4-1 | 1220×2440 | |
2 | ≥3 | 0.4-2 | 1220×2440 | |
2.5 | ≥3.5 | 0.4-2.5 | 1220×2440 | |
3 | ≥4 | 0.4-3 | 1220×2440 | |
4 | ≥5.5 | 0.4-4 | 1220×2440 | |
5 | ≥6.5 | 0.4-5 | 1220×2440 | |
6 | ≥8 | 0.4-5 | 1220×2440 | |
7 | ≥9 | 0.4-6 | 1220×2440 | |
8 | ≥10 | 0.5-7.5 | 1220×2440 | |
9 | ≥11 | 0.5-8 | 1220×2440 | |
10 | ≥12 | 0.6-8 | 1220×2440 | |
12--20 | ≥15-24 | 0.8-6 | 1220×2440 | |
21-30 | ≥25-36 | 1.0-6 | 1220×2440 | |
We can also produce the customized specification according to clients' requirement. |
