Stainless Steel Square Wire Mesh | Precision Filtration Solutions

BZ Stainless Steel Square Wire Mesh is engineered for high-performance filtration and separation across industries. Featuring perfectly uniform openings and exceptional resistance to acids, alkalis, and extreme temperatures, our mesh provides reliable durability for petroleum, chemical, and food processing applications.

● Premium Filtration Solutions:

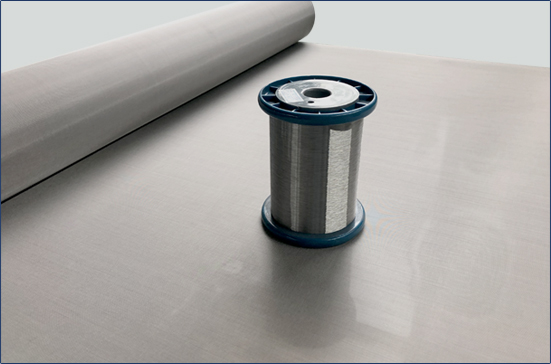

Stainless steel square wire mesh is a commonly used product where the mesh count in width and length are equal, resulting in a square hole shape. It is manufactured using high-quality wire and woven via precision machines in various styles.

Key Features:

・Uniform Surface: Flat and consistent weave for precise filtration.

・Extreme Resistance: Excellent durability against acid, alkali, and high temperatures.

・Mechanical Strength: High wear resistance and strength for heavy-duty industrial use.

・Easy Processing: Versatile material suitable for custom fabrication into filters or screens.

Technical Parameters & Weave Types

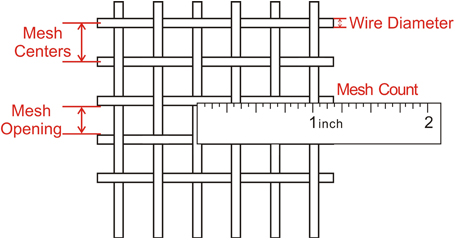

The mesh is defined by three primary parameters: Wire Diameter, Mesh Opening Size, and Mesh Count. The third parameter is determined once the other two are decided.

Square Wire Mesh Specification Marking Method

● Mesh Calculation Formulas:

・Mesh Size = 25.4÷(Dia+Opening)

・Mesh Opening = (25.4÷Mesh Count)−Dia

・Opening Rate = Opening²÷(Opening+Dia)²

BZ Wire Mesh - Smart Calculator

Input any TWO values to calculate the others.

1. Wire Diameter (D) mm

2. Mesh Opening (O) mm

3. Mesh Count (Per Inch)

4. Opening Rate (%)

● Common Weave Styles:

・Plain Weave: Typically used for lower mesh counts.

・Twill Weave: Normally used for higher mesh counts (fine mesh over 150 mesh).


Plain Weave Type	Twill Weave Type

Common Specifications

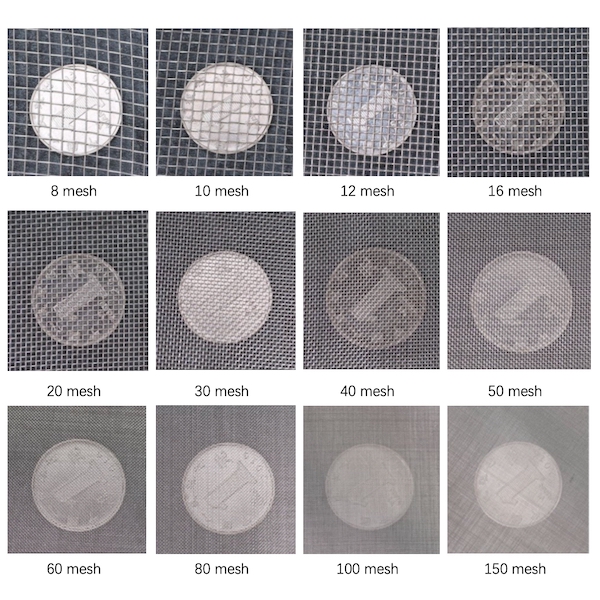

Comparison chart of stainless steel wire mesh sizes ranging from 8 mesh to 150 mesh shown against a coin for scale.

BZ wire mesh supplies stainless steel square mesh in a comprehensive range of mesh counts: plain weave from 1 to 450 mesh, and twill weave from 150 to 800 mesh. Available in standard rolls (1m to 1.6m in width) and super-width rolls up to 8 meters. Materials include SS304, 304L, 316, and 316L, manufactured in compliance with ASTM, JIS, or DIN standards.

Table 1: Plain Weave SS Wire Mesh Specifications
Mesh/Inch	Wire Dia.（mm）	Opening Size（mm）	Open Area(%)	Weight（kg/m2）
1	2.03	23.37	84.65	2.06
2	1.6	11.1	76.39	2.56
3	1.37	7.09	70.23	2.82
4	1.6	4.75	55.96	5.12
4	1.19	5.16	66.03	2.83
5	1.04	4.04	63.25	2.70
6	0.89	3.35	62.42	2.38
8	0.71	2.46	60.22	2.02
10	0.64	1.91	56.10	2.05
10	0.51	2.03	63.87	1.30
12	0.58	1.52	52.39	2.02
12	0.51	1.6	57.50	1.56
14	0.58	1.22	45.94	2.35
14	0.51	1.3	51.59	1.82
16	0.46	1.13	50.51	1.69
18	0.5	0.91	41.65	2.25
20	0.4	0.87	46.93	1.60
20	0.45	0.82	41.69	2.03
24	0.35	0.71	44.86	1.47
26	0.3	0.68	48.15	1.17
28	0.3	0.61	44.93	1.26
30	0.25	0.6	49.83	0.94
40	0.2	0.44	47.27	0.80
50	0.18	0.33	41.87	0.81
60	0.16	0.26	38.32	0.77
60	0.19	0.23	29.99	1.08
70	0.12	0.24	44.44	0.50
80	0.12	0.2	39.06	0.58
80	0.13	0.19	35.25	0.68
100	0.1	0.15	36.00	0.50
100	0.11	0.14	31.36	0.61
104	0.06	0.18	56.25	0.19
120	0.09	0.12	32.65	0.49
120	0.058	0.15	52.01	0.20
120	0.08	0.13	38.32	0.38
140	0.07	0.11	37.35	0.34
145	0.045	0.13	55.18	0.15
150	0.06	0.11	41.87	0.27
150	0.05	0.12	49.83	0.19
160	0.05	0.11	47.27	0.20
160	0.04	0.12	56.25	0.13
160	0.035	0.12	59.94	0.10
180	0.05	0.09	41.33	0.23
180	0.04	0.1	51.02	0.14
200	0.05	0.08	37.87	0.25
200	0.04	0.09	47.93	0.16
220	0.05	0.07	34.03	0.28
230	0.035	0.08	48.39	0.14
230	0.03	0.08	52.89	0.10
250	0.04	0.06	36.00	0.20
250	0.035	0.07	44.44	0.15
270	0.035	0.06	39.89	0.17
270	0.03	0.06	44.44	0.12
280	0.035	0.06	39.89	0.17
300	0.03	0.05	39.06	0.14
325	0.025	0.05	44.44	0.10
325	0.028	0.05	41.09	0.13
325	0.03	0.05	39.06	0.15
350	0.022	0.05	48.23	0.08
370	0.022	0.05	48.23	0.09
400	0.022	0.04	41.62	0.10
420	0.022	0.04	41.62	0.10
450	0.02	0.04	44.44	0.09

Table 2: Twill Weave SS Wire Mesh Specifications
Mesh/Inch	Wire Dia.（mm）	Opening Size（mm）	Open Area(%)	Weight（kg/m2）
150	0.07	0.0993	34.40	0.37
165	0.058	0.0959	38.83	0.28
180	0.058	0.0831	34.69	0.30
200	0.058	0.069	29.52	0.34
225	0.05	0.069	33.62	0.28
235	0.045	0.0631	34.07	0.24
250	0.04	0.0616	36.76	0.20
270	0.04	0.0541	33.05	0.22
280	0.04	0.0507	31.25	0.22
300	0.035	0.0497	34.43	0.18
300	0.038	0.0467	30.40	0.22
300	0.04	0.0447	27.85	0.24
315	0.035	0.0456	32.01	0.19
325	0.035	0.0432	30.52	0.20
350	0.035	0.0376	26.82	0.21
350	0.03	0.0426	34.43	0.16
363	0.03	0.04	32.65	0.16
385	0.03	0.0377	31.01	0.17
400	0.025	0.0385	36.76	0.13
400	0.028	0.0355	31.25	0.16
400	0.03	0.0335	27.83	0.18
420	0.03	0.0302	25.17	0.19
450	0.025	0.0314	31.00	0.14
500	0.025	0.0258	25.79	0.16
510	0.025	0.0248	24.80	0.16
530	0.024	0.0239	24.90	0.15
635	0.018	0.022	30.25	0.10
635	0.02	0.02	25.00	0.13
800	0.016	0.0164	25.62	0.10

Industrial Applications

BZ Square Wire Mesh is a critical material for gas and liquid separation across numerous sectors:

・Petroleum & Chemical: Oil filtration and chemical fiber production.

・Mining & Metallurgy: Screening and media separation.

・Food & Medicine: Hygienic filtration and pharmaceutical processing.

・Manufacturing: Rubber and tire manufacturing industries.

Need a Custom Solution?

We provide custom materials including iron, aluminum, brass, copper, and nickel mesh upon request.
