The Introduction of Wedge Wire Screen

The Introduction of Wedge Wire Screen

Wedge wire screen, which is also called Johnson Screen, is made of wedge shape support rod and sieving wire by welding process, the main material used is stainless steel, carbon steel or galvanized steel. The size and pitch of support rod is large, used for support the structure, and the size and slot of sieving wire is small for sieving the material. The size range of the slot is commonly from 0.1mm to 3mm.


The Wedge wire screen is a widely used sieving material for many industries used for screening, filtering, dehydrating and desliming processes. The wedge wire screen has very good strength and it can be cut and produced into various shapes of filtering devices. The wedge wire screen product normally be used in mining, coal, oil, chemical industry, sugar making, wine, paper, food and other industries.


Product Features:

●The sieving slot is thin on the top and wide on the below, it is easy for liquid flow out.

●The material has good wear resistance and corrosion resistance.

●The welding quality is good and has long service life.

●The structure is strong, and has good stiffness and bearing capacity.

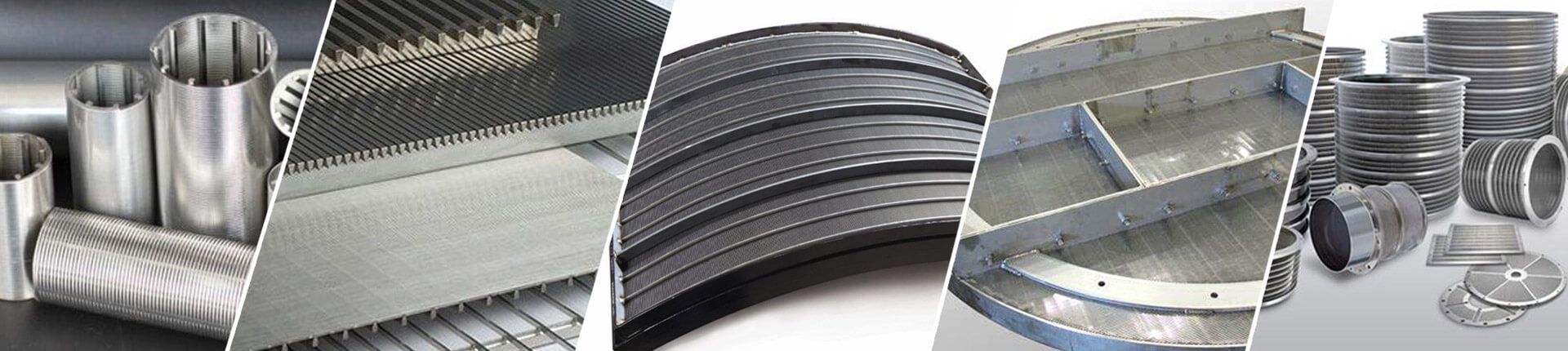

●Easy for cutting and processing, can be produced in to tube shape, curve shape, or irregular shape.

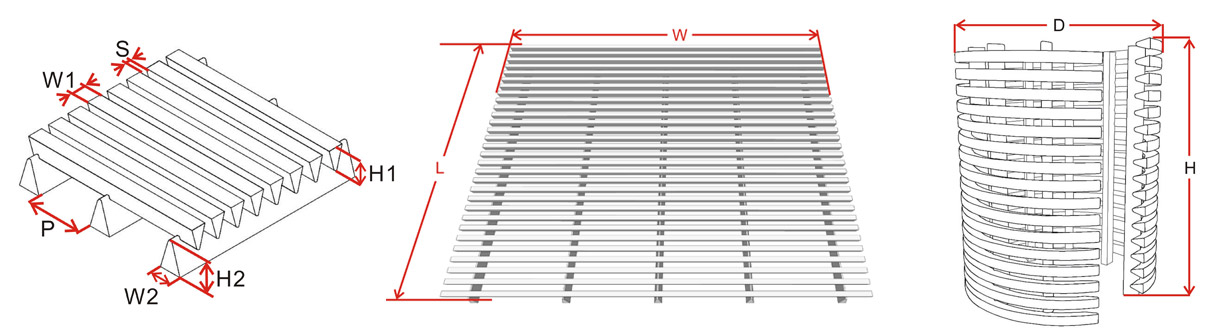

The Parameters and Common Specifications of Wedge Wire Screen

The Parameters and Common Specifications of Wedge Wire Screen

For special shape and deep processed wedge wire screen, we need clients to provide drawing with detail design, BZ Wire Mesh can offer the quotation according to clients' requirements.


Following is the commonly used size of wedge wire:

SIEVING WIREStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire Screen
WIDTH(mm)1.501.502.302.301.803.003.703.30
HEIGHT(mm)2.202.502.703.604.304.705.606.30
SUPPORT RODStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenStainless Steel Wedge Wire ScreenROUND
WIDTH(mm)2.302.303.003.703.30Ø2.5--Ø5mm
HEIGHT(mm)2.703.604.705.606.30----

If clients require other special shape and size of wedge wire, it also can be customized. The commonly used slot size is 0.1mm.0.15mm,0.2mm.0.25mm,0.3mm, up to 3mm. Other slot size can be customized according to clients' requirement.
