The Introduction of Chain-link Wire Mesh Fence


Chain-link wire mesh fence

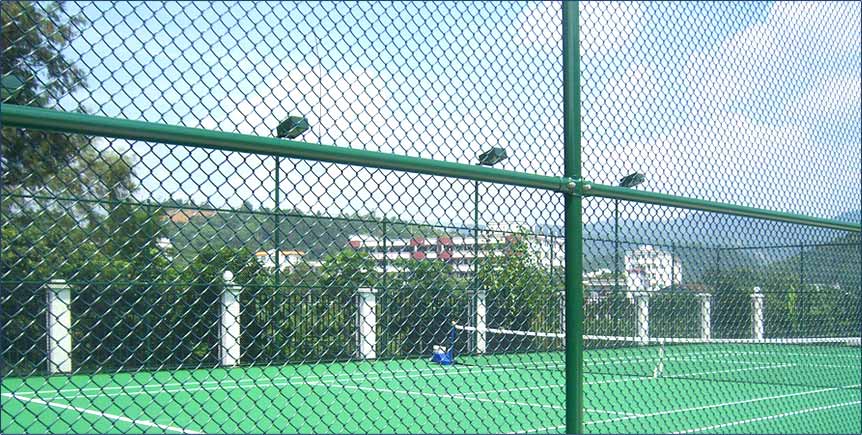

The chain-link wire mesh fence including the chain-link mesh, and the posts and frame system matched, BZWIREMESH can produce the mesh, the frame system and all the accessories used for installation. Chain-link wire mesh is a kind of common used material for fence, it is made of hot-galvanized wire or PVC coated wire. The mesh holes of chain-link mesh is uniform, and the surface is flat, the style of chain-link mesh is simple but looks very good, and it is has a long service life. In the meaning, chain-link wire mesh has flexible surface, can absorb the impact and keep personnel safety, so it is very suitable to be used in stadiums, outdoor basketball courts, baseball fields, golf courses and other facilities that need very high wire mesh fence. And it can also be the protection of building roof or other areas. The production width of chain-link mesh can be up to 5m and the length of each roll can be up to 50m, which is very suitable for large area installation.


Product Features:

Large dimensions-the width can be 5m and length can be 50m, suitable for large area.

Flexible surface-the surface of chain-link fence can absorb the impact and keep safety.

Low price with good quality-the cost is chain-link fence is low but the effect is very good.

Low cost for transportation-the mesh rolls after compressed have very small volume can reduce the transportation cost.

The product parameters and specifications

Chain-link wire mesh fence

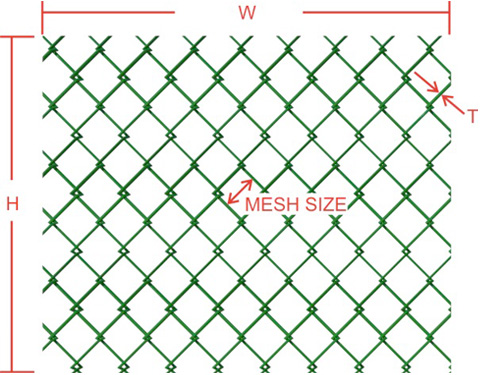

The main parameters of chain-link wire mesh fence are wire diameter, opening size, mesh width and length.



The edges of chain-link wire mesh fence including bend edge and twisted edge.




Following are the common specifications of chain link wire mesh fence

Common   Specifications for Chain-link Wire Mesh Fence

Opening Size

Wire Diameter

Surface   Treatment

Mesh Width

Mesh Length

(mm)

(mm)

200*200

4

Hot-dip   galvanized

0.5-5.0m

1-50m

150*150

3

100*100

3.5

80*80

3

60*60

2.5

50*50

2.5

40*40

3

30*30

2.5

20*20

1

80*80

3.0/4.0(PVC   coated)

PVC Coating

60*60

2.5/3.5(PVC   coated)

55*55

2.0/3.0(PVC   coated)

50*50

2.0/3.0(PVC   coated)

45*45

3.0/4.0(PVC   coated)

40*40

2.0/3.0(PVC   coated)

The Installation of Chain-link Wire Mesh Fence

Chain-link wire mesh fence is normally installed in frames, and there are two basic installation options.

Chain-link wire mesh fence
Chain-link wire mesh fence

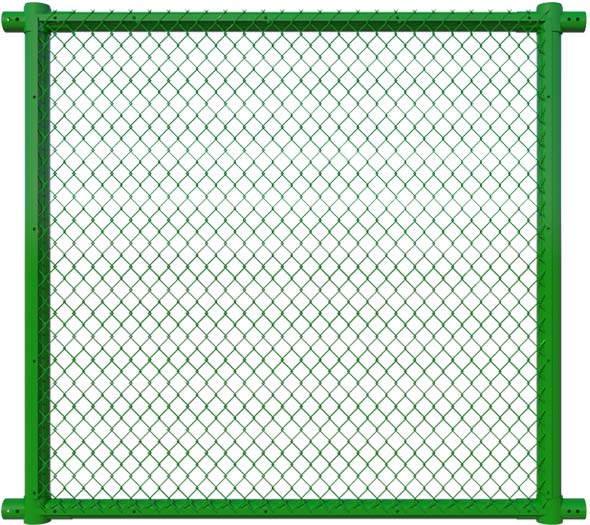

Chain-link wire mesh fence Cover-flat-bars

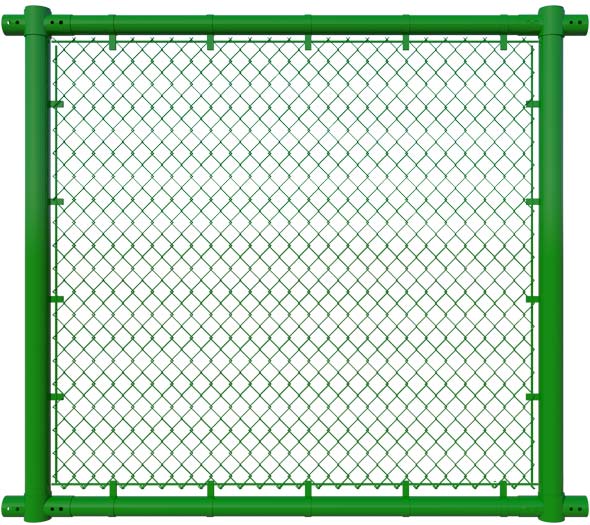

Chain-link wire mesh fence Cross-rod-type

Cover flat bars type: This type is compress and fix the edge by flat bars, this can fill the mesh in the whole frame area.Cross rod type:This type using for metal rods cross the four sides of the chain-link wire mesh fence, then tense the mesh and install the metal rods to the frame by climps.
