Stainless steel cable ferrule mesh

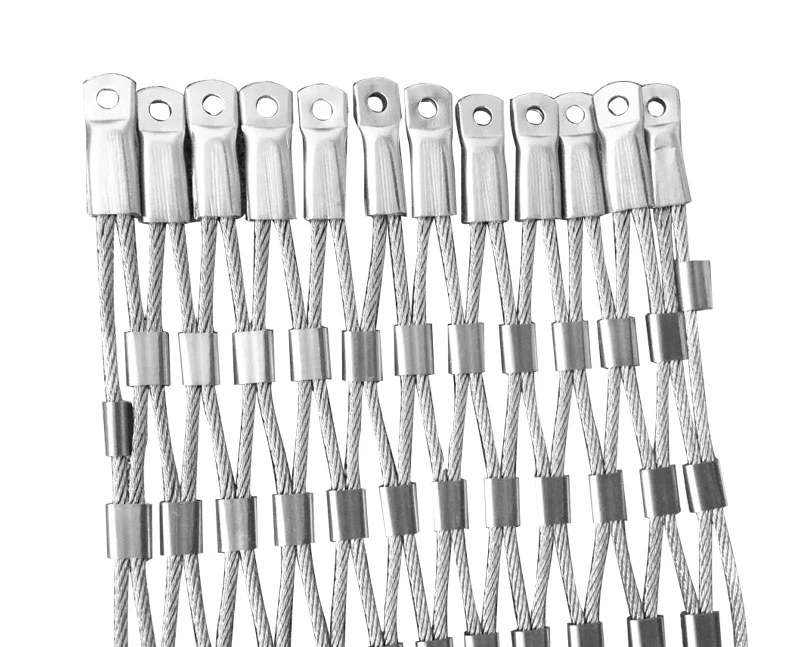

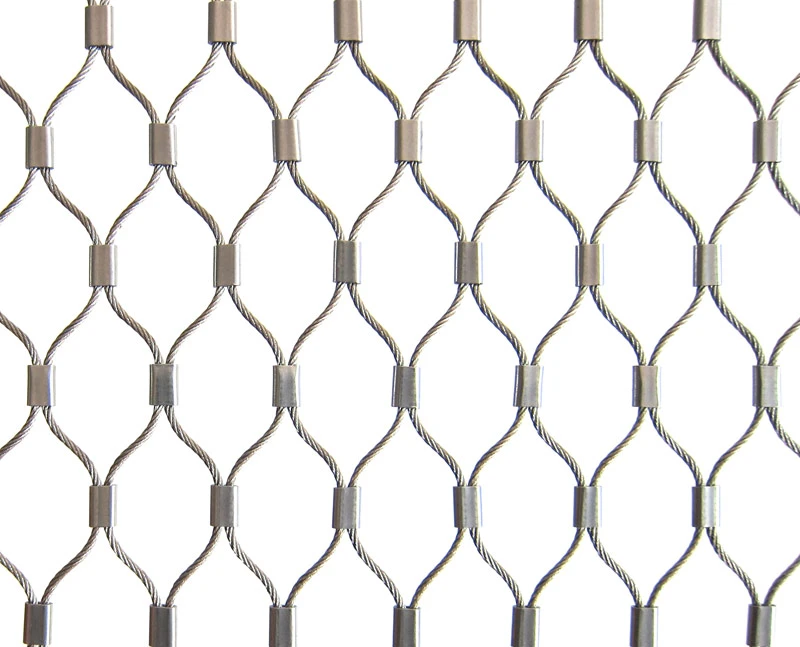

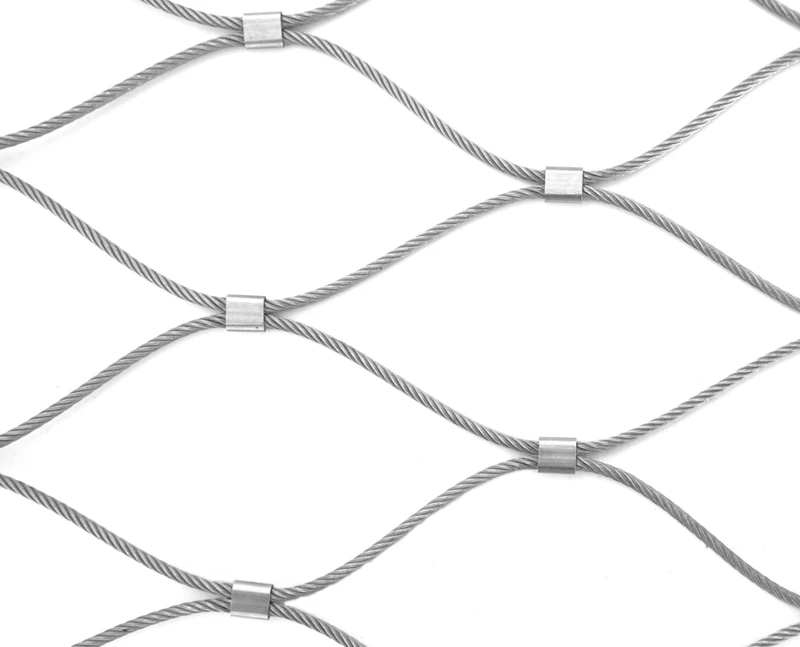

Stainless steel cable ferrule type mesh is also called SS ferrule mesh or X-TEND mesh. The mainly material is stainless steel cable and stainless steel ferrule. It is produced by putting the ferrules tough the cable first, and then press the ferrule using special molds. This kind of mesh has very beautiful appreance, it also has very good strength and  flexibility. We can product various types of ferrule mesh in different cable diameter and mesh opening to meet our clients' requirement.

Item No.s	Cable Diameter		Mesh Opening Size（W×H）
	inch	mm	inch	mm
BZ-32120F	1/8	3.2	4.75 x 8.23	120 x 207.8
BZ-32102F	1/8	3.2	4 x 6.9	102 x 176.7
BZ-3290F	1/8	3.2	3.55 x 6.15	90 x 156
BZ-3276F	1/8	3.2	3 x5.2	76 x 131.6
BZ-3251F	1/8	3.2	2 x3.46	51 x88.3
BZ-24102F	3/32	2.4	4x6.9	102x176.7
BZ-2490F	3/32	2.4	3.55x6.15	90x 156
BZ-2476F	3/32	2.4	3 x 5.2	76x 131.6
BZ-2460F	3/32	2.4	2.4x 4.16	60x 104
BZ-2451F	3/32	2.4	2x3.46	51 x 88.3
BZ-2076F	5/64	2.0	3 x 5.2	76 x 131.6
BZ-2060F	5/64	2.0	2.4x 4.16	60 x 104
BZ-2051F	5/64	2.0	2 x 3.46	51 x 88.3
BZ-2038F	5/64	2.0	1-1/2 x 2.6	38 x 65.8
BZ-1676F	1/16	1.6	1.2 x2.08	76 x 131.6
BZ-1651F	1/16	1.6	2x 3.46	51 x 88.3
BZ-1638F	1/16	1.6	1-1/2 x 2.6	38 x 65.8
BZ-1630F	1/16	1.6	1.2x2.08	30 x 52
BZ-1625F	1/16	1.6	1 x 1.73	25.4 x 44
BZ-1238F	3/64	1.2	1-1/2x2.6	38 x 65.8
BZ-1230F	3/64	1.2	1.2 x 2.08	30 x 52
BZ-1225F	3/64	1.2	1 x 1.73	25.4 x 44
BZ-1220F	3/64	1.2	4/5 x 1.39	20 x 34.6

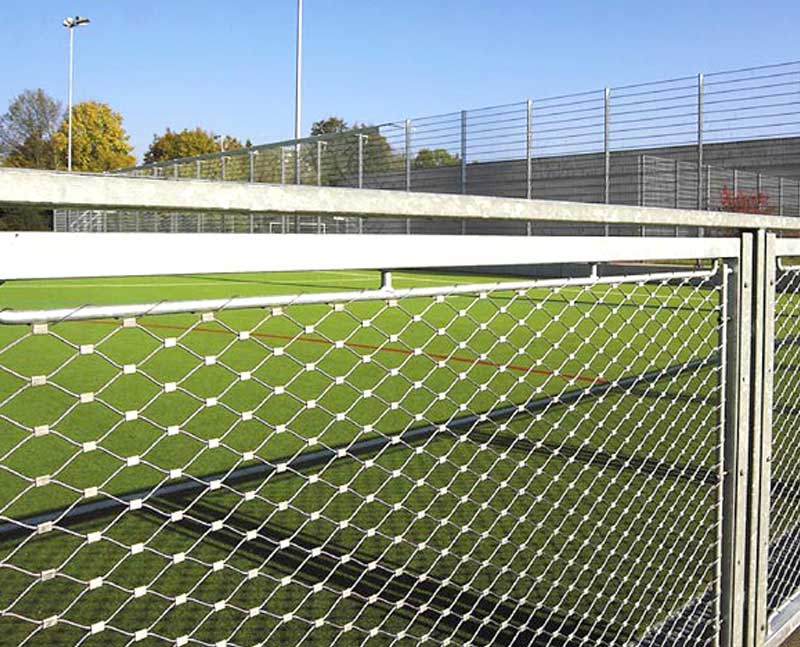

The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.

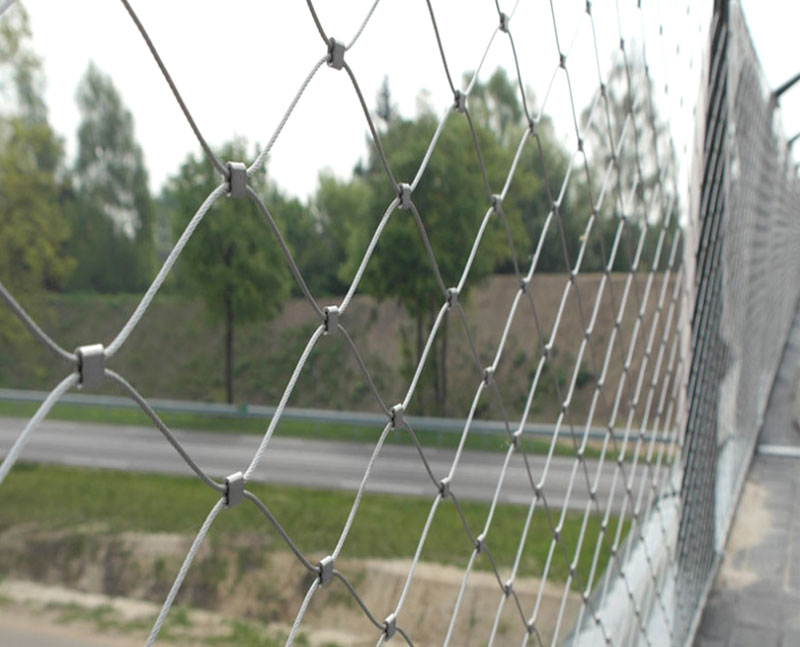

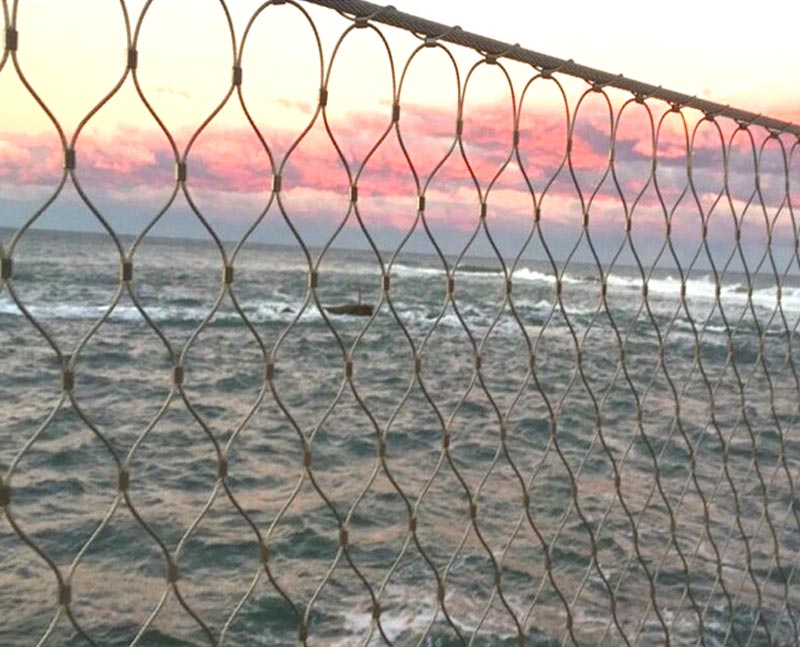

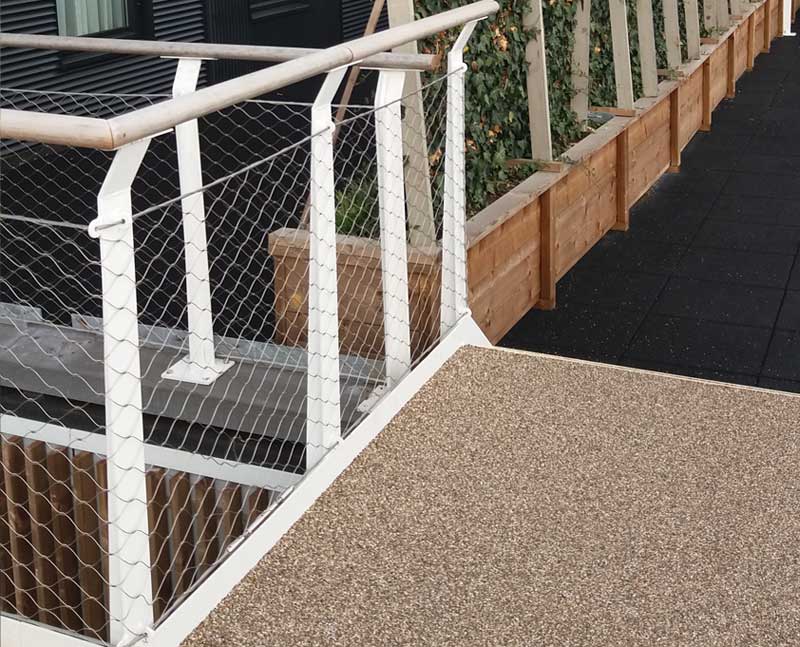

Ferrule mesh handrail infills	Stainless steel cable safety mesh	Stainless steel cable protection mesh

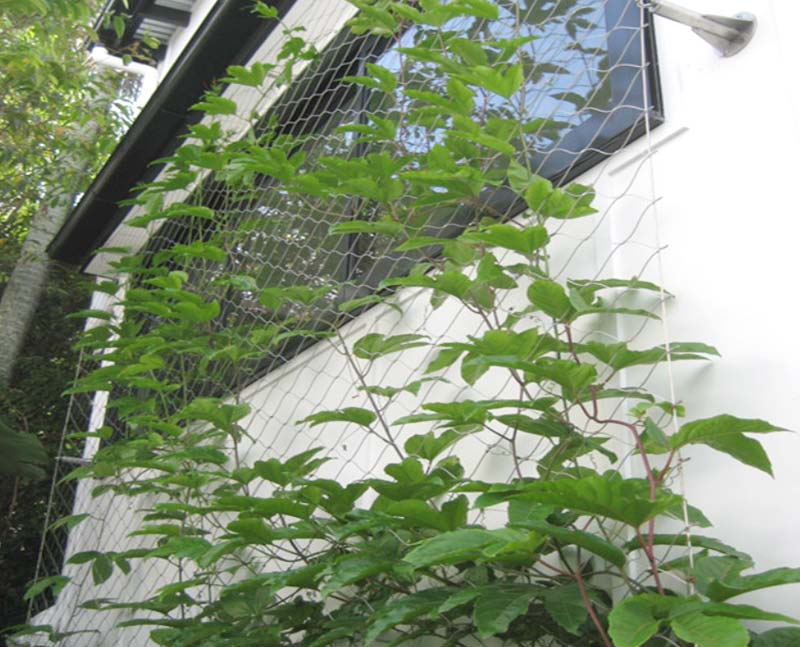

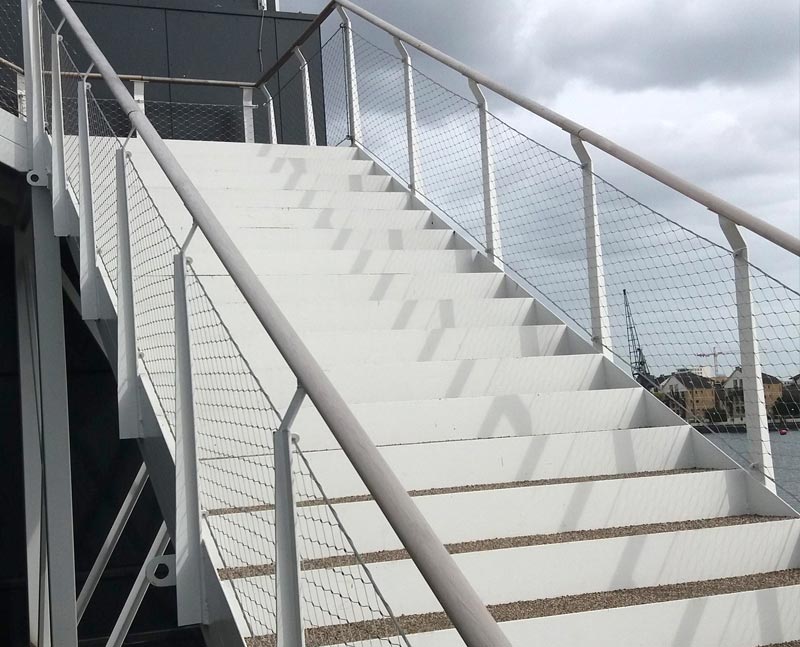

Stainless steel cable mesh green wall	Ferrule mesh handrail infills	Ferrule mesh handrail infills
