The Introduction of Razor Wire and Fence

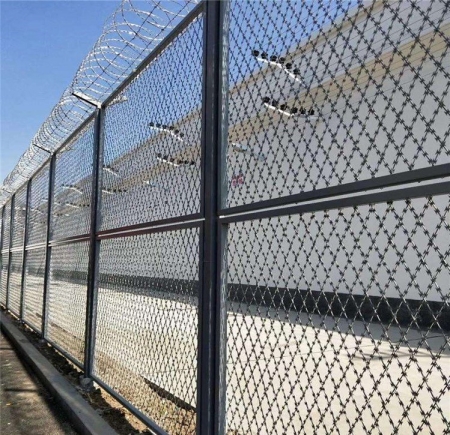

Example Of Razor Wire And Razor Wire Fence Installation

Razor wire is a new type of protective barbed rope. Concertina razor wire is made up with galvanized center wire and outer covered razor in stainless steel or galvanized steel. Razor wire fence has the advantages of beautiful appearance, economy and practicality, has good resistance prevention effect, easy for installation, etc. At present, razor barbed fence has been widely used in many countries' industrial and mining enterprises, garden apartments, border posts, military fields, prisons, detention centers, government buildings and other national security facilities.

Concertina razor wire fence is a kind of wire fence product made by welding razor  wire together. Same as concertina razor wire, this kind of fence also cover densely with razors, this make the fence an not be climbed. Also the steel wire in the razor  wire makes the fence very hard to be cut, it is very suitable for prisons, outposts, factory warehouses and other areas requiring high security.


Characteristics of Razor Wire and Razor Wire Fence:

●Sharp appearance, good deterrence

●Rotatable blades, strong intrusion prevention capability

●Corrosion-resistant, long lifespan

●Area separation, flexible mobility

●Low cost, suitable for large-scale use

●Easy installation, easy maintenance

The Parameters and Specifications of Razor Wire and Fence

Razor Wire is a protective net product made of sharp blades punched from hot-dip galvanized steel plates or thin steel plates, combined with high-tensile galvanized steel wire or stainless steel wire as the core wire.


The main parameters of concertina razor wire are center wire diameter, blade thickness, barb length, barb width and barb spacing.

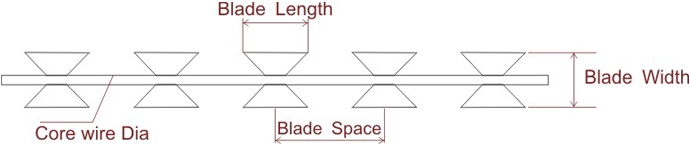

Razor Wire Specification Labelling


Following are the common specifications of Razor Wire & Razor Wire Coil:

Common Specifications of Razor Wire

Item No.

Blade Style

Thickness

Wire Dia

Barb Lengtd

Barb width

Bard spacing

BTO-10

Razor Wire and Fence

0.5±0.05

2.5±0.1

10±1

13±1

26±1

BTO-12

Razor Wire and Fence

0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-18

Razor Wire and Fence

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22

Razor Wire and Fence

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-28

Razor Wire and Fence

0.5±0.05

2.5

28

15

45±1

BTO-30

Razor Wire and Fence

0.5±0.05

2.5

30

18

45±1

BTO-60

Razor Wire and Fence

0.6±0.05

2.5±0.1

60±2

32±1

100±2

BTO-65

Razor Wire and Fence

0.6±0.05

2.5±0.1

65±2

21±1

100±2


Common Specifications of Razor Wire Coil

Outside Diameter

No. of Loops

Standard Length per Coil

Type

Notes

450 mm

33

7-8 m

CBT-60.65

Single coil

500 mm

56

12-13 m

CBT-60.65

Single coil

700 mm

56

13-14 m

CBT-60.65

Single coil

960 mm

56

14-15 m

CBT-60.65

Single coil

450 mm

56

8-9 m (3 clips)

BTO-10.12.18.22.28.30

Cross type

500 mm

56

9-10 m (3 clips)

BTO-10.12.18.22.28.30

Cross type

600 mm

56

10-11 m (3 clips)

BTO-10.12.18.22.28.30

Cross type

600 mm

56

8-10 m (5 clips)

BTO-10.12.18.22.28.30

Cross type

700 mm

56

10-12 m (5 clips)

BTO-10.12.18.22.28.30

Cross type

800 mm

56

11-13 m (5 clips)

BTO-10.12.18.22.28.30

Cross type

900 mm

56

12-14 m (5 clips)

BTO-10.12.18.22.28.30

Cross type

960 mm

56

13-15 m (5 clips)

BTO-10.12.18.22.28.30

Cross type

980 mm

56

14-16 m (5 clips)

BTO-10.12.18.22.28.30

Cross type


Main components of Razor Wire Fence are the blades and the wire fence. The blades are  sharp metal pieces fixed on the wire fence, typically in a sawtooth or fish-scale pattern, with  strong puncture capability.


The main parameters of razor wire fence are Mesh Size(square hole), SW*LW(diamond hole), Fence Width(W), Fence Height(H).

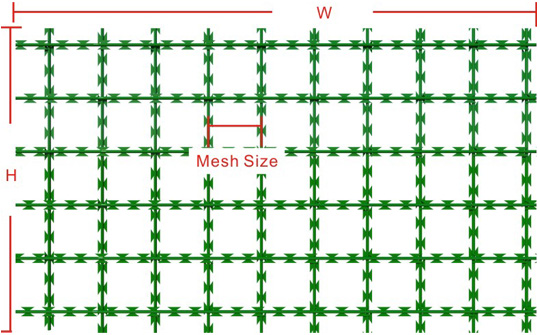

Square Hole Razor Wire Fence

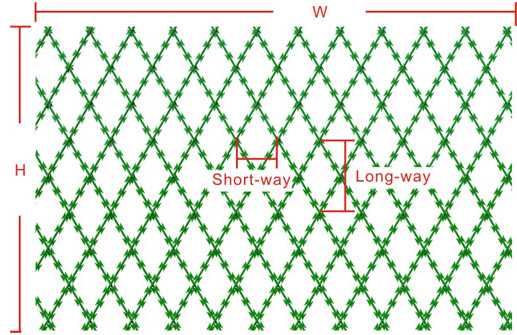

Diamond Hole Razor Wire Fence



Following are the common specifications of Razor Wire Fence:

Common specifications of concertina razor wire fence

Mesh Size

Hole Shape

Mesh Width

Suited blade type

100mm×100mm

Square

1.2m ~ 2.4m

BTO-10.12.18.22.28.30, CBT-60.65

100mm×150mm

Square

1.2m ~ 2.4m

BTO-10.12.18.22.28.30, CBT-60.65

200mm×200mm

Square

1.2m ~ 2.4m

BTO-10.12.18.22.28.30, CBT-60.65

75mm×150mm

Diamond

1.2m ~ 2.4m

BTO-10.12.18.22.28.30, CBT-60.65

100mm×200mm

Diamond

1.2m ~ 2.4m

BTO-10.12.18.22.28.30, CBT-60.65

150mm×300mm

Diamond

1.2m ~ 2.4m

BTO-10.12.18.22.28.30, CBT-60.65

Other mesh size can be produced according to customers' requirements


The wire fence is a mesh-like structure made of metal wire or rebar, with high impact  resistance and tensile strength. The height of the razor barbed fence is between 1 meter and 4.5 meters, with heights above 2.5 meters typically divided into upper and lower sections. Border dimensions are 20*30mm, 20*40mm, etc., and posts are usually made of 60mm-80mm square tubes or round tubes.

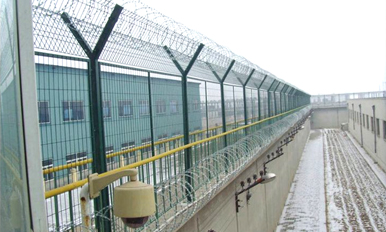

Razor Wire And Razor Wire Fence For Prison Walls

Installation Methods for Razor Wire and Razor Wire Fence

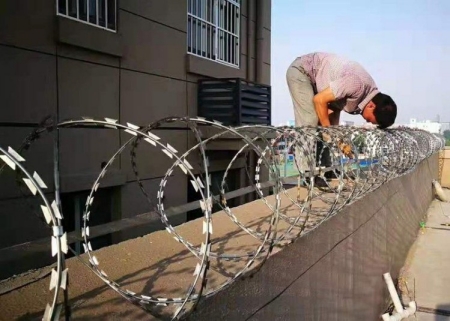

Razor Wire Installation Site


●In the design and installation of Razor Wire, it is recommended to fix it with V-shaped brackets or install it on top of Y-shaped fence posts.


Razor wire is often installed in conjunction with wire mesh fencing at the top to enhance security. When used as wall protection, it must be securely installed to prevent falling due to external factors.

Y-shaped supports are welded from square tubes, round tubes, or angle iron. The overall structure follows the principle of triangular stability, and both ends of the support and the bottom are pre-drilled to facilitate threading and securing the razor wire during installation.

Another method of fixing Razor Wire during installation is to use straight columns as supports and use special clips to push and fix the wire in a horizontal circle, which appears simpler.


●Installation of Razor Wire Fence is usually simpler than Razor Wire. First mounting the razor wire mesh on a metal frame and then connecting it to the pillars using fasteners, similar to the installation of mesh fencing.

The Applications of Razor Wire and Fence

Razor wire fence has a very wide range of application, and it is also very easy for installation. The razor wire can be set alone, or it can be used along with other type of wire mesh fence to increase the defense effect.


Concertina razor wire fence are normally welded in to a frame firstly, then install the frame to the structure.

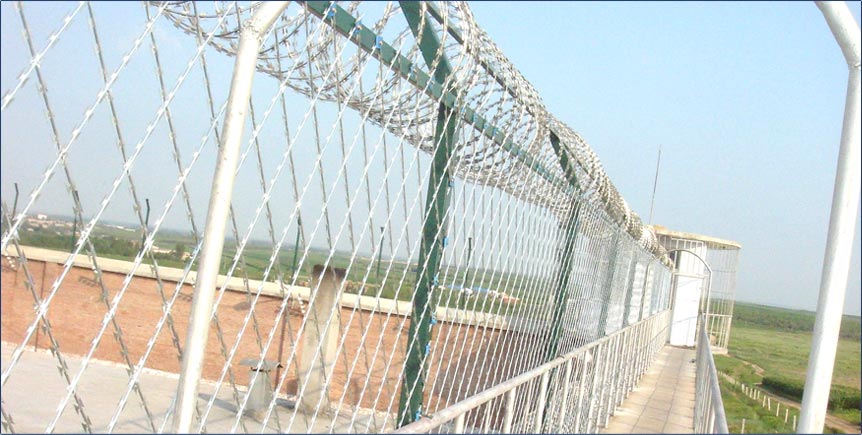

Razor Wire For Security

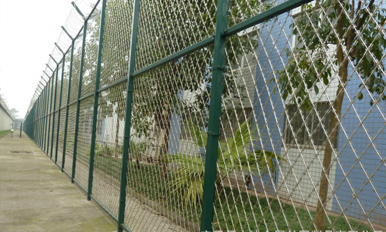

Razor Wire Fence For Isolation

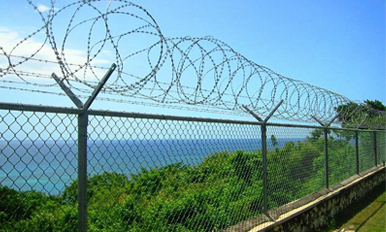

Anti Climbing Razor Wire Mesh
