The Introduction of Hexagonal wire mesh

Stainless steel hexagonal wire mesh

Item:Hexagonal Wire Mesh, Chicken Wire Mesh

Material:Carbon Steel, Stainless Steel, Galvanized Steel,PVC coated wire.

Woven Type:Continuous twist, Double-direction twist

Surface Treatment:Hot-dip galvanizing, Electro-galvanizing, Galfan coating, PVC coating, etc.

Surface Coating Option:

Option1: Surface coating before woven

Option2: Surface coating after woven




Applications:

1.Fixing, heat preservation and insulation of building wall

2.The binding of pipe in power plants and chemical plants , thermal insulation for the boilers.

3.Anti-freezing, residential and landscaping protection

4.Raising chickens and ducks, isolating and protecting poultry houses.

5.Protect and support seawall, hillside, road and bridge and other water and wood works.


Stainless steel hexagonal wire meshStainless steel hexagonal wire mesh

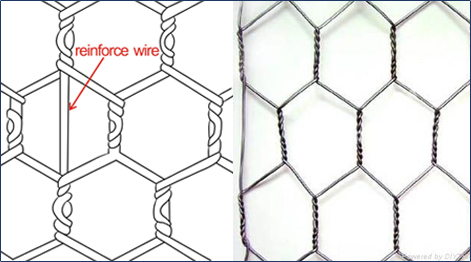

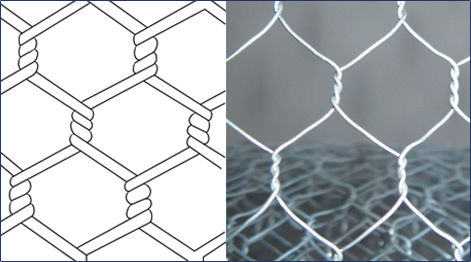

Continuous twist hexagonal wire meshDouble-direction twist hexagonal wire mesh

The Parameters and Specifications of Hexagonal Wire Mesh

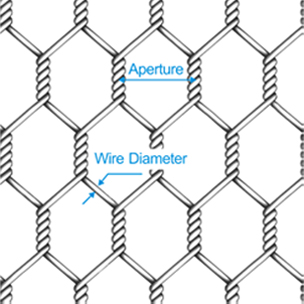

The wire diameter of hexagonal wire mesh is various according to the mesh apertures, for the galvanized material, the wire diameter is from 0.3mm to 2.0mm, and for the PVC coated material, the wire diameter is from 0.8mm to 2.6mm.


Stainless steel hexagonal wire mesh


Following is the common specifications of hexagonal wire mesh.

Mesh size

Wire (BWG)

Standard roll height (m)

Roll length (m)

3/8'

BWG27 - BWG24

0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.0010 m / 20 m / 30 m / 50 m

1/2'

BWG27 - BWG23

0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00

10 m / 20 m / 30 m / 50 m

5/8'

BWG26 - BWG22

0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.0010 m / 20 m / 30 m / 50 m

3/4''

BWG25 - BWG200.50/0.60/0.80/1.00/1.20/1.50/1.80/2.0010 m / 20 m / 30 m / 50 m

1"

BWG27 - BWG190.50/0.60/0.80/1.00/1.20/1.50/1.80/2.0010 m / 20 m / 30 m / 50 m
1 1/4"BWG23 - BWG190.50/0.60/0.80/1.00/1.20/1.50/1.80/2.0010 m / 20 m / 30 m / 50 m
1 1/2"BWG23 - BWG190.50/0.60/0.80/1.00/1.20/1.50/1.80/2.0010 m / 20 m / 30 m / 50 m

2"

BWG23 - BWG190.50/0.60/0.80/1.00/1.20/1.50/1.80/2.0010 m / 20 m / 30 m / 50 m

2 1/2"

BWG21 - BWG19

0.80/1.00/1.20/1.50/1.80/2.00

10 m / 20 m / 30 m / 50 m

3"

BWG20 - BWG18

1.00/1.20/1.50/1.80/2.00

20 m / 30 m / 50 m

4 "

BWG19 - BWG17

1.00/1.20/1.50/1.80/2.0

20 m / 30 m / 50 m
