The Introduction for Welded Wire Mesh Fence Panels

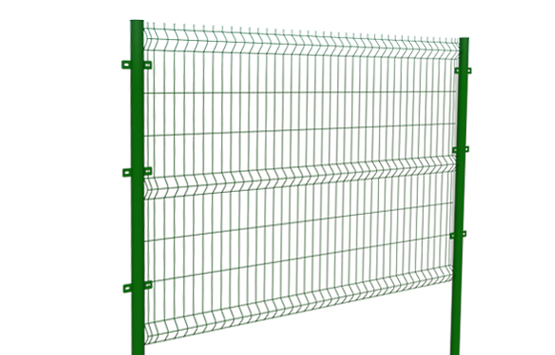

Welded wire mesh fence panels

Welded wire mesh fence panels, also called wire mesh fence or welded fence is a commonly used fence products. Welded wire mesh fence panels has the advantages of good strength, beautiful appearance, low cost and convenient for installation. Welded wire mesh fence panels is normally produced of carbon steel wire or galvanized wire by welding process. And covered with PVC coating as protection, can give the wire mesh fence very good weather ability.


Product Features:

●Beautiful outlook
●Low Price with High Quality
●Easy for Installation
●Long Service-life

Main Parameter and Common Specifications of Welded Wire Mesh Fence

        Welded wire mesh fence panels

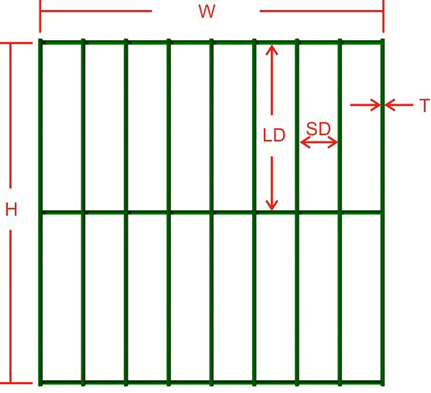

The Main Parameters of Welded Wire Mesh Fence:

W(Fence Width), H(Fence Height),

SD*LD (Opening Size),

T(Wire Thickness).




BZWIREMESH provide welded wire mesh fence in various specifications and dimensions, we can also produce the wire  mesh fence according to our clients' design, following is the common specifications for the welded wire mesh fence.

Common Specifications for Welded Wire Mesh Fence Panels

Mesh Size(mm)

Wire Thickness(mm)

Coating

Mesh Height(mm)

Mesh Length(mm)

50*200

50*100

65*200

3.5

4.0

PVC coating

Galvanized

630

2000-3000

830

2000-3000

1030

2000-3000

1230

2000-3000

3.5

4.0

4.5

5.0

6.0

1430

2000-3000

1530

2000-3000

1730

2000-3000

1830

2000-3000

1930

2000-3000

2030

2000-3000

2230

2000-3000

2430

2000-3000

We can also produce the fence according to clients’ requirements

Designs for Welded Wire Mesh Fence

Double Side Wire
W Bend Fence

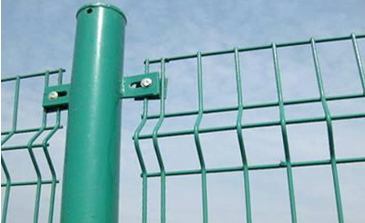

Double Side Wire: The design of double side wire can create two small gaps in both sides of the fence, it can match with the ear-plate on the post and can be installed easily.

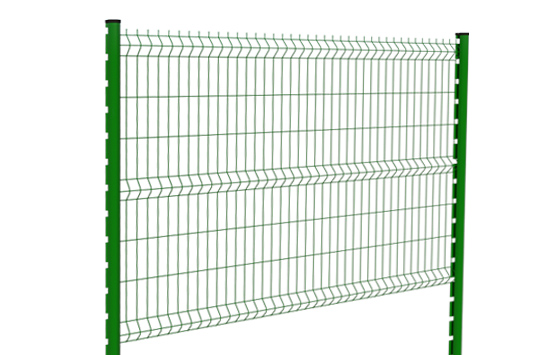

W Bend Fence: The W bend also called 3D bend,
this is one of the commonly used type. There's 3 bends on the top, bottom and middle of the fence, it makes the fence looks more beautiful and has better strength.
Top Bend Fence
Triangle Rolled Fence

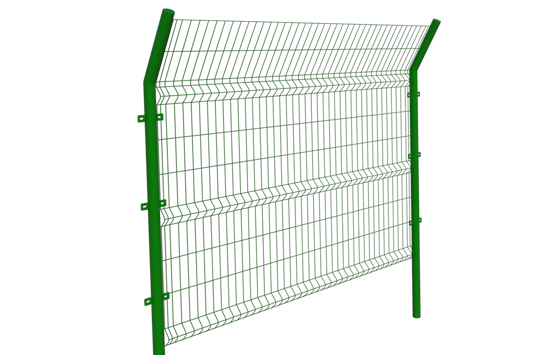

Top Bend Fence: This type of fence has a 30 degree bend on the top, this make the fence more difficult to climb from outer side.

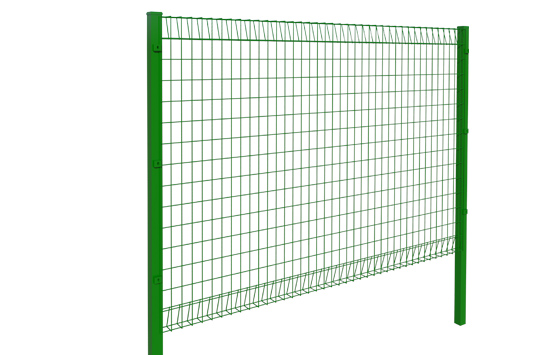

Triangle Rolled Fence: This type of fence has triangle rolled on the top and bottom, it can increase the stability of the fence and looks more beautiful.

The Posts of Welded Wire Mesh Fence

To install the wire mesh fence, there's three main kinds of posts available. The round post, square  post, and the peach post. Clients can choose the posts according to their design. Following is the common specifications of the fence posts.

Square PostRound PostPeach Post
Square PostRound PostPeach Post
Normal Specifications For The Wire Mesh Fence Posts
Post TypePost Size(mm)Thickness(mm)Post HeightRemark
Square Post40*601.2-2.0As requiredCommon Type
50*501.2-2.0Common Type
60*601.2-2.5Common Type
60*802.0-2.5Strong Type
Round Postφ481.0-3.0Common Type
φ601.0-3.0Strong Type
Peach Post50*701.2Common Type
70*1001.2Strong Type
We can also produce the post according to clients' requirements

Except the basic types, there are also some special designs for the posts.Also we can produce the posts according to our clients' design.

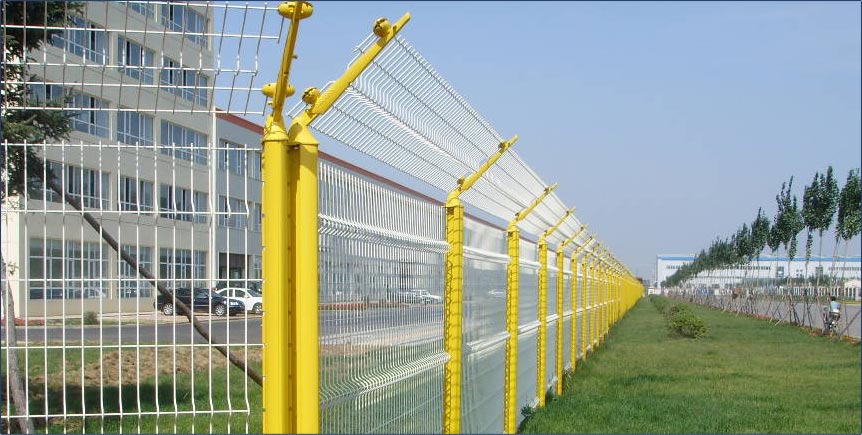

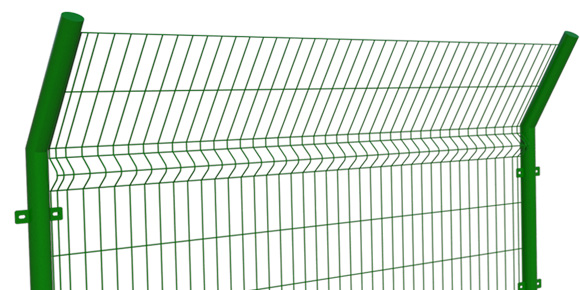

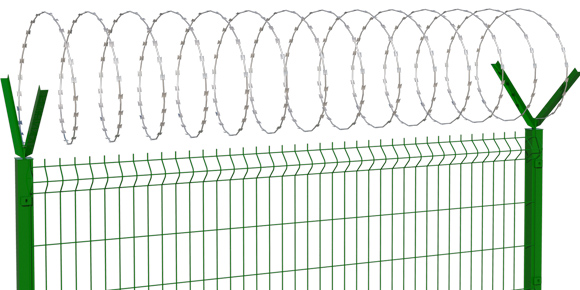

Posts with angle plate to install the razor tapePosts with bend to install the top bend fence
Posts with angle plate to install the razor tapePosts with bend to install the top bend fence

The Colorful Wire Mesh Fence

GREENBLACKYELLOW
GREENBLACKYELLOW
WITHTGREYBROWN
WITHTGREYBROWN

We can also paint the color according to the RAL number provided by our clients.
