Stainless Steel Wire Mesh With Complete Specifications In Stock At BZ Wire Mesh
Home > Products > Stainless Steel Wire Mesh

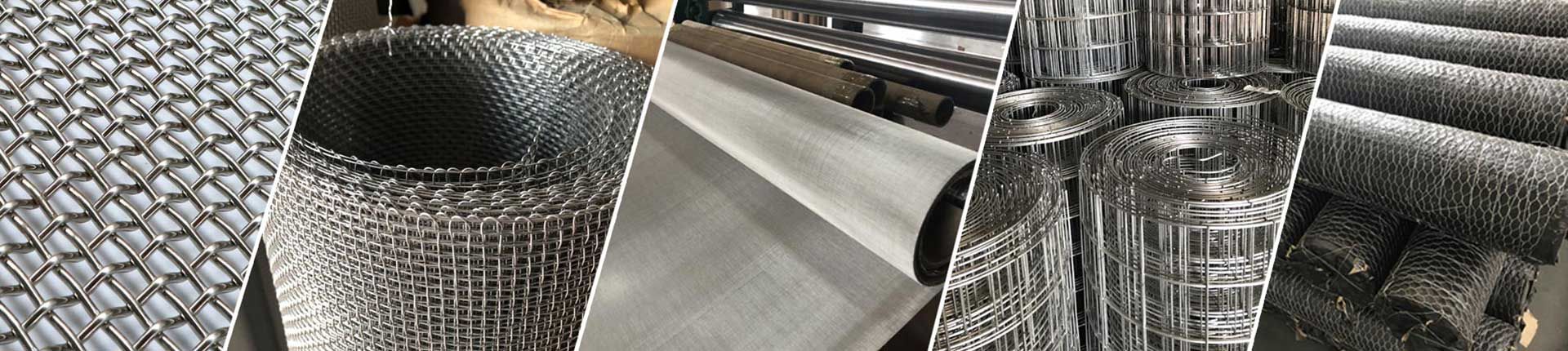

The Main Types of Stainless Steel Wire Mesh

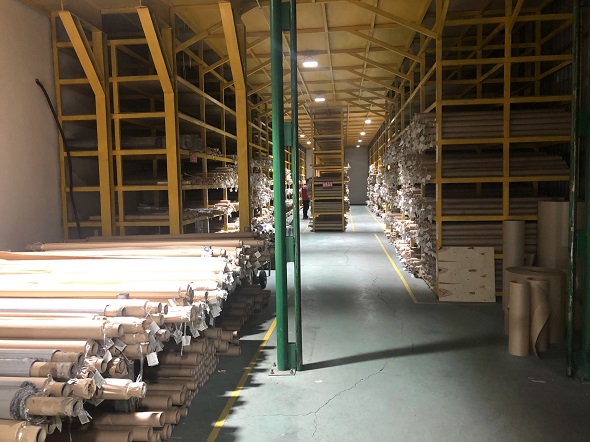

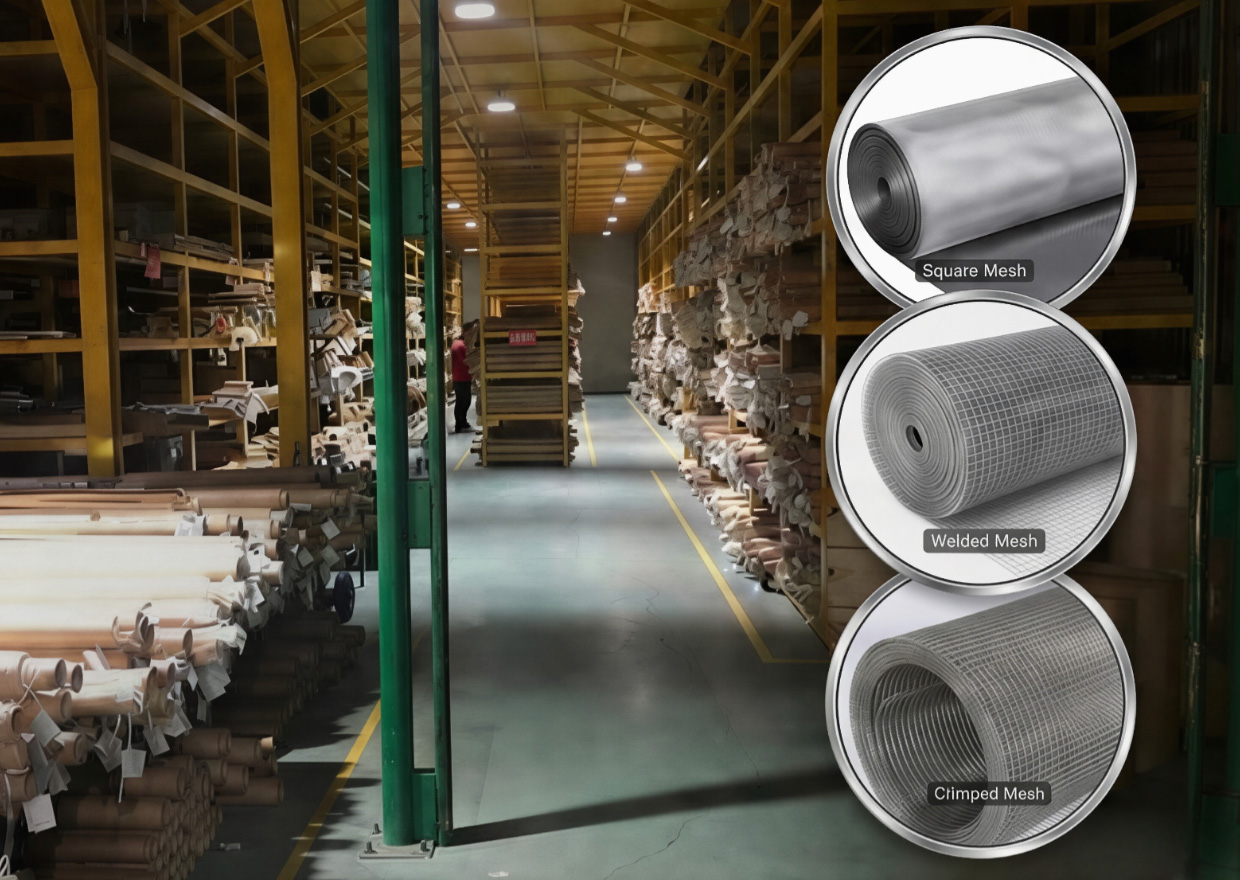

Stainless Steel Wire Mesh Warehouse

Stainless Steel Wire Mesh also called Stainless Steel Wire Cloth or Stainless Steel Wire Screen, is made of stainless steel wire by weaving, welding or twisting process. Stainless steel wire mesh is a popular material used in a wide range of industries and applications due to its strength, durability, versatility and high resistance to corrosion and damaging. With anti-rust and anti-corrosion properties, the woven wire mesh is widely used in petroleum, chemical rubber, medicine, food, mechanical processing, construction, mining and aquaculture industries.


According to different production processes, stainless steel wire mesh can be divided into Stainless Steel Woven Wire Mesh, Stainless Steel Welded Wire Mesh. Herein, the stainless steel woven wire mesh mainly including plain weave stainless steel wire mesh, twill weave stainless steel wire mesh, stainless steel crimped wire mesh, stainless steel dutch weave wire mesh, five-heddle wire mesh, stainless steel hexagonal wire mesh, stainless steel rope mesh, knitted stainless steel mesh and so on.

Plain Weave

Weldeding Type

Crimped Weave

Twist Weave

According to different purposes, stainless steel wire cloth can be divided into Stainless Steel Filter Mesh, stainless steel decorative wire mesh, stainless steel oil filter wire mesh, stainless steel paper-making wire mesh. stainless steel wire mesh gauze packing, Stainless Steel Mosquito Mesh.


According to different specifications, stainless wire mesh can be divided into heavy duty wire mesh, fine wire mesh, ultra-thin wire mesh, stainless steel wire mesh rolls, stainless steel wire mesh panels.

According to different hole shapes and wire types, stainless steel wire mesh can be divided into square wire mesh, diamond wire mesh, hexagonal wire mesh, and flat wire mesh, etc. stainless steel wire cloth can be produced by steel wire in different shapes, including round wire, flat wire, triangle wire, ellipse wire or other irregular shape wire required.The hole shapes of ss wire mesh can be square , rectangular, diamond and hexagonal.

According to different materials, stainless steel wire mesh can be divided into T-304 stainless steel wire mesh, T-316 stainless steel wire mesh and so on.


BZWIREMESH produce and sale following types of stainless steel mesh products, You can check the product details you need here, or inform us your inquiry to our e-mail box at the bottom of the page:

The Raw Material of Stainless Steel Wire Mesh

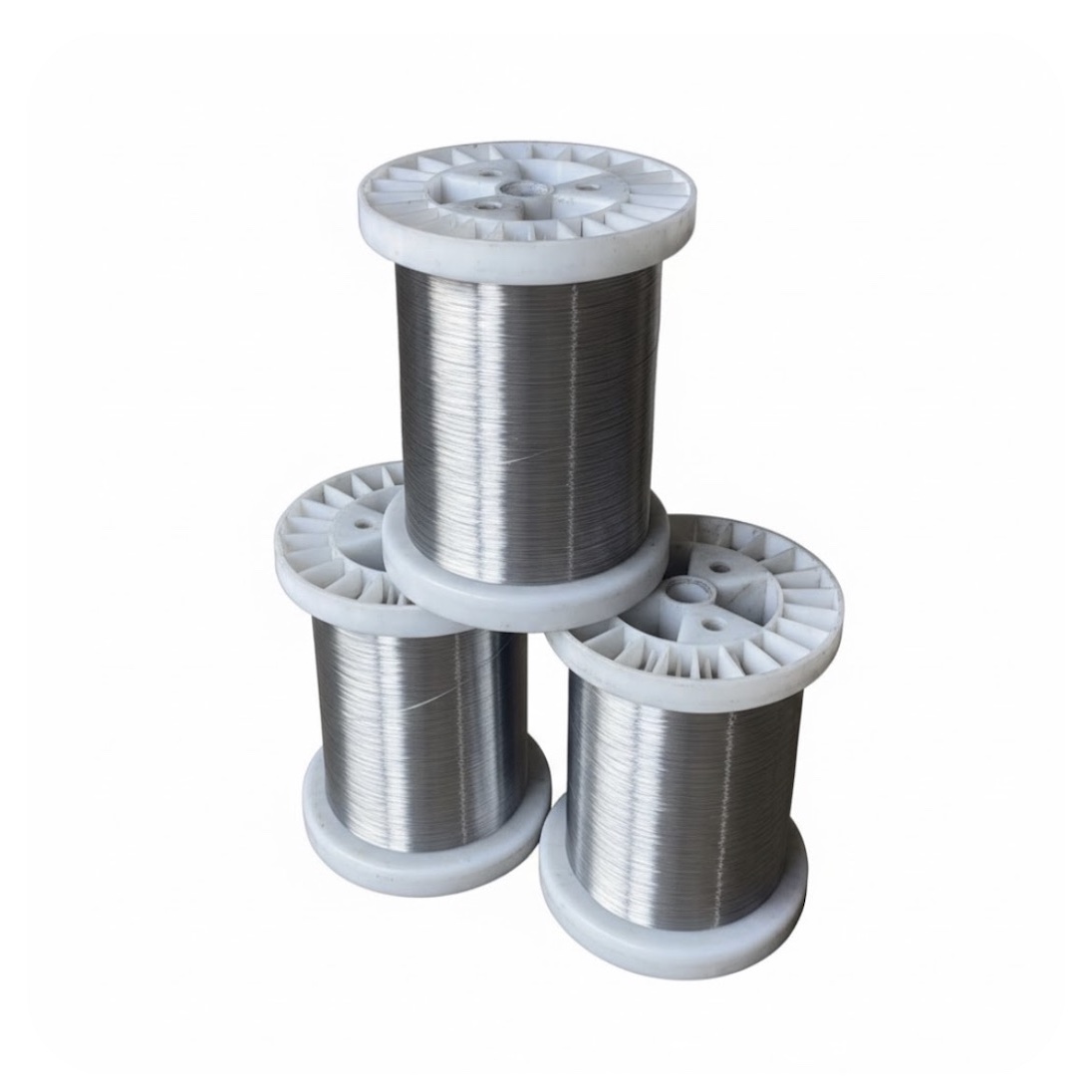

High Quality Stainless Steel Wire

        The normal material of stainless steel mesh is SS304, SS304L, SS316, SS316L, SS430, SS310S, SS321, etc. And the raw material can follow the standard of ASTM, GB/T . We also provide other special material mesh as clients' requirements.

The most commonly used stainless steel wire cloth materials are SS304 and SS316. 304 stainless steel wire mesh has strong corrosion resistance. It also has good corrosion resistance to alkaline solutions, most organic and inorganic acids. It is mainly used for screening and filtering under acid and alkali environment, and it is also used in mining, chemical, food, pharmaceutical and other industries. Because of the addition of molybdenum, 316 stainless steel wire mesh has excellent corrosion resistance, atmospheric corrosion resistance and high temperature strength, and can be used under harsh conditions. Compared with 304 stainless steel mesh, 316 stainless steel mesh has better resistant to the corrosion of marine environment and aggressive industrial atmospheres.

Common Specifications Range of Stainless Steel Wire Mesh

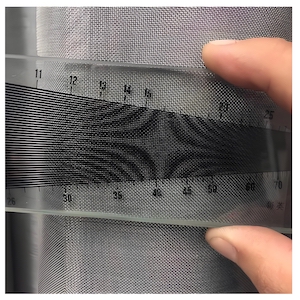

 Stainless Steel Wire Mesh Specification Inspection

        The specifications of ss wire mesh mainly include wire diameter, aperture (mesh count), mesh width and mesh length. The measurement unit of wire diameter is millimeters, the measurement unit of hole diameter is millimeters or inches, the density of mesh is expressed by mesh count, and the width and length of mesh are mostly measured in meters and feet. Measuring tools mainly include micrometers, vernier calipers, tape measures, density mirrors and length counters, etc.

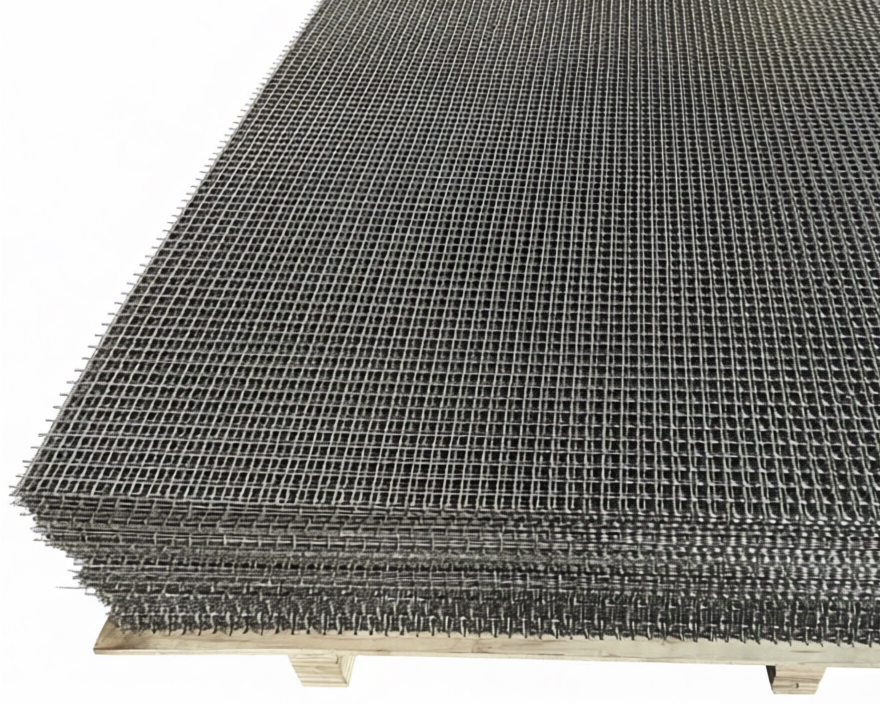

Finished ss wire mesh products are generally divided into two forms: stainless steel wire mesh rolls and stainless steel wire mesh sheets. The sizes of stainless steel mesh sheets are generally 1 m*2 m and 1.22 m*2.44 m. The stainless steel mesh rolls common used mesh width is 1 m, 1.2 m, 1.3 m, 1.5 m and the roll length is normally 30 m. Stainless steel wire mesh used for industry can be over 2 m width which is also called super-width stainless steel wire cloth, and the mesh width can over 6 m and max width up to 8 m.

Common   stainless steel wire mesh Specifications

Material (SS 304/316)

Wire Dia.(mm)

Mesh Count (Mesh Size)

Width Range

Square Wire Mesh


1-800 Mesh

1-8 M

Dutch Weave Mesh


10x64-400x2800 Mesh

1-6 M

Crimped Wire Mesh



1-8 M

Welded Wire Mesh


1", 1/2", 3/4”, 2”, 4”

1-3 M

Hexagonal Wire Mesh


3/8”, 1/2", 1",2”, 4”

1-2 M

Mesh Count refers to the number of mesh   openings per square inch.

After mesh produced, BZWIREMESH can carry out surface treatment for wire mesh according to  clients' requirements, including passivation, polishing, spray painting, baking varnish, oxidation coloring, etc.

Features and Applications of Stainless Steel Wire Mesh

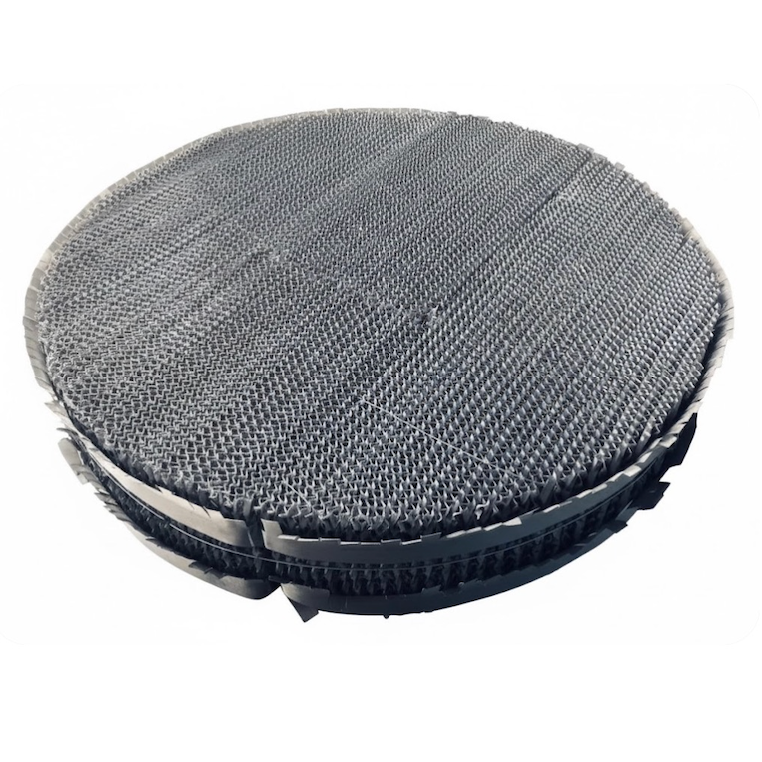

Stainless Steel Wire Mesh Chemical Packing


1. High resistance to corrosion: Stainless steel is a highly resistant material that can be used in various harsh environments, including corrosive chemicals and high temperature.

2. High strength and durability: The weaving process makes ss wire mesh to be a strong and durable material that is able to bear heavy loads and resist the damage.

3. Versatile: stainless steel  mesh is available in a variety of sizes, shapes, and patterns, making it a versatile material that can be used in many different applications.

4. Easy to clean: stainless steel wire cloth is easy to clean and maintain, making it a convenient choice for applications where hygiene is important.


1. Filtration: Stainless steel filter mesh is commonly used as a filtration material, as its mesh pattern allows for the efficient removal of impurities from liquids, gases, and other substances.

2. Architecture and construction: Stainless steel architecture wire mesh is used in a variety of architectural and construction applications, including as cladding for buildings, as fencing, and as reinforcing material.

3. Industrial: stainless wire mesh is used in various industrial applications, including as a component in machinery and equipment, as a component in electrical systems, and as a material for use in corrosive environments.

4. Food and beverage industry: Stainless steel wire mesh is used in the food and beverage industry due to its strength, durability, and resistance to corrosion, making it a safe and hygienic choice for use in food processing and storage.

Deep Processed Products of stainless steel mesh

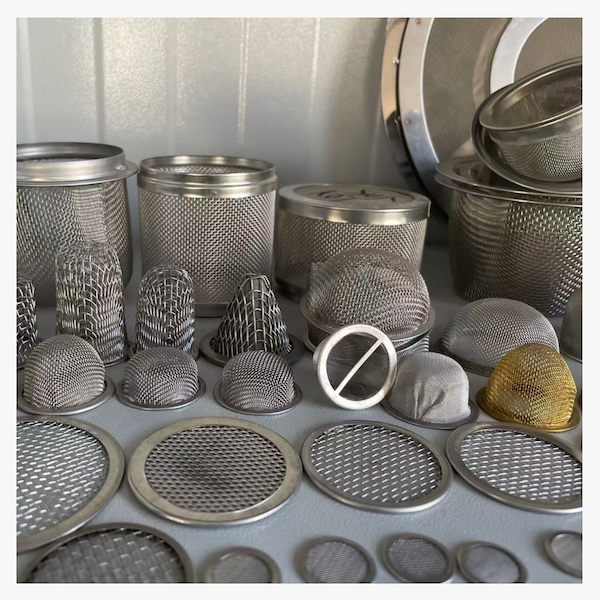

Stainless Steel Wire Mesh Filters

        Wire mesh deep processing means that using stainless steel mesh as material, by cutting, spot welding, bending, punching, edge covering and other processes, make the stainless steel wire mesh material into wire mesh discs, wire mesh strips, wire mesh tubes, wire mesh baskets, wire mesh racks, wire mesh cages, stainless steel wire cloth filters, wire mesh decorations and other products.

The surface of deep-processed stainless wire mesh products is smooth, rust-free, corrosion-resistant, non-toxic, hygienic, and environmentally friendly. The surface can be polished, dipped, sprayed, and can be made into handicrafts of various colors according to customer needs.

Wire mesh deep-processed products are widely used in medical disinfection, food barbecue, industrial filtration, commodity baskets, cargo turnover boxes, food racks, pet cages and so on.
